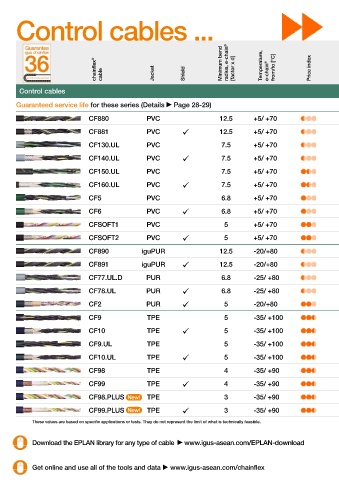

Control cables ... chainflex types
®
chainflex ® cable Jacket Shield Minimum bend radius, e-chain ® [factor x d] Temperature, e-chain ® from/to [°C] Price index Approvals and standards Flame retardant Oil-resistant Halogen-free UV-resistant Torsion-resistant v max. unsupported [m/s] v max. gliding [m/s] a max. [m/s 2 ] chainflex ® Class Page
Control cables 52
Guaranteed service life for these series (Details Page 28-29) Selection table From page 54
CF880 PVC 12.5 +5/ +70 3 20 3.1.1.1 58
CF881 PVC 12.5 +5/ +70 3 20 3.1.1.1 62
CF130.UL PVC 7.5 +5/ +70 3 2 20 4.4.1.2 66
CF140.UL PVC 7.5 +5/ +70 3 2 20 4.4.1.1 70
CF150.UL PVC 7.5 +5/ +70 3 2 20 4.4.3.2 74
CF160.UL PVC 7.5 +5/ +70 3 2 20 4.4.3.1 78
CF5 PVC 6.8 +5/ +70 10 5 80 5.5.2.2 82
CF6 PVC 6.8 +5/ +70 10 5 80 5.5.2.1 86
CFSOFT1 PVC 5 +5/ +70 10 5 80 7.1.2.1 90
CFSOFT2 PVC 5 +5/ +70 10 5 80 7.1.2.1 92
CF890 iguPUR 12.5 -20/+80 3 20 3.1.3.1 94
CF891 iguPUR 12.5 -20/+80 3 20 3.1.3.1 98
CF77.UL.D PUR 6.8 -25/ +80 10 5 80 5.5.3.3 102
CF78.UL PUR 6.8 -25/ +80 10 5 80 5.5.3.1 106
CF2 PUR 5 -20/+80 10 5 80 6.5.3.1 110
CF9 TPE 5 -35/ +100 10 6 100 7.6.4.2 114
CF10 TPE 5 -35/ +100 10 6 100 7.6.4.1 118
CF9.UL TPE 5 -35/ +100 10 6 100 6.6.4.2 122
CF10.UL TPE 5 -35/ +100 10 6 100 6.6.4.1 126
CF98 TPE 4 -35/ +90 10 6 100 7.5.4.2 130
CF99 TPE 4 -35/ +90 10 6 100 7.5.4.1 132
CF98.PLUS New! TPE 3 -35/ +90 10 6 100 7.5.4.2 134
CF99.PLUS New! TPE 3 -35/ +90 10 6 100 7.5.4.1 138
These values are based on specific applications or tests. They do not represent the limit of what is technically feasible. chainflex types mentioned in the catalogue as “resistant to bio oil“ have been tested by DEA according to VDMA 24568 with Plantocut 8 S-MB.
®
