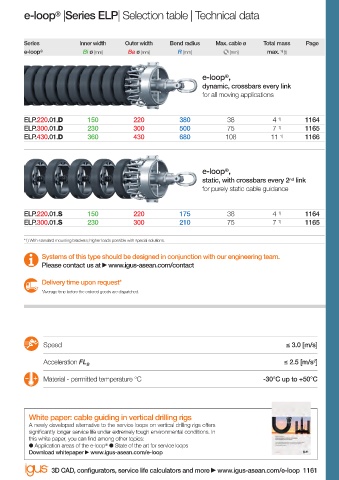

e-loop |Series ELP| Selection table | Technical data
®

Series Inner width Outer width Bend radius Max. cable ø Total mass Page
e-loop ® Bi ø [mm] Ba ø [mm] R [mm] [mm] max. 1) [t]

e-loop ,
®
dynamic, crossbars every link
for all moving applications

ELP.220.01.D 150 220 380 38 4 1) 1164
ELP.300.01.D 230 300 500 75 7 1) 1165
ELP .430.01.D 360 430 680 108 11 1) 1166

e-loop ,
®
static, with crossbars every 2 link
nd
for purely static cable guidance
ELP.220.01.S 150 220 175 38 4 1) 1164
ELP.300.01.S 230 300 210 75 7 1) 1165
*1) With standard mounting brackets; higher loads possible with special solutions.

Systems of this type should be designed in conjunction with our engineering team.
Please contact us at www.igus-asean.com/contact

Delivery time upon request*
*Average time before the ordered goods are dispatched.

Speed ≤ 3.0 [m/s]
≤ 2.5 [m/s ]
2
Acceleration FL B
Material - permitted temperature °C -30°C up to +50°C

White paper: cable guiding in vertical drilling rigs
A newly developed alternative to the service loops on vertical drilling rigs off ers
signifi cantly longer service life under extremely tough environmental conditions. In
this white paper, you can fi nd among other topics:
● Application areas of the e-loop ® ● State of the art for service loops
Download whitepaper www.igus-asean.com/e-loop

3D CAD, confi gurators, service life calculators and more www.igus-asean.com/e-loop 1161
