P. 1242

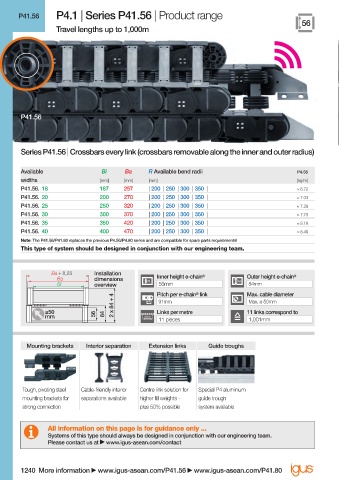

P41.56   P4.1 | Series P41.56 | Product range
                                                                                              56
                                Travel lengths up to 1,000m












                       P41.56



                       Series P41.56 | Crossbars every link (crossbars removable along the inner and outer radius)


                       Available            Bi   Ba    R Available bend radii               P4.56
                       widths              [mm]  [mm]  [mm]                                 [kg/m]
                       P41.56. 18          187   257   | 200  | 250  | 300  | 350  |        ≈ 6.72
                       P41.56. 20          200   270   | 200  | 250  | 300  | 350  |        ≈ 7.03
                       P41.56. 25          250   320   | 200  | 250  | 300  | 350  |        ≈ 7.39
                       P41.56. 30          300   370   | 200  | 250  | 300  | 350  |        ≈ 7.79
                       P41.56. 35          350   420   | 200  | 250  | 300  | 350  |        ≈ 8.19
                       P41.56. 40          400   470   | 200  | 250  | 300  | 350  |        ≈ 8.49
                       Note: The P41.56/P41.80 replaces the previous P4.56/P4.80 series and are compatible for spare parts requirements!
                       This type of system should be designed in conjunction with our engineering team.


                               Ba + 8.25+ 8,25  Installation
                                 Ba       dimensions     Inner height e-chain ®  Outer height e-chain ®
                                 Bi       overview     hi  Pitch per e-chain ®  link  ha  Max. cable diameter
                                                          56mm
                                                                                84mm
                                               2 x 84 + 4  mm  91mm             Max. ø 50mm
                              ≤50                        Links per metre        11 links correspond to
                              mm          56  84      n/1m
                                                          11 pieces             1,001mm

                         Mounting brackets  Interior separation  Extension links  Guide troughs





                        Tough, pivoting steel   Cable-friendly interior   Centre link solution for   Special P4 aluminium
                        mounting brackets for   separations available  higher fi ll weights -  guide trough
                        strong connection            plus 50% possible  system available


                              All information on this page is for guidance only ...
                              Systems of this type should always be designed in conjunction with our engineering team.
                              Please contact us at   www.igus-asean.com/contact


                       1240 More information   www.igus-asean.com/P41.56   www.igus-asean.com/P41.80
