P. 1274

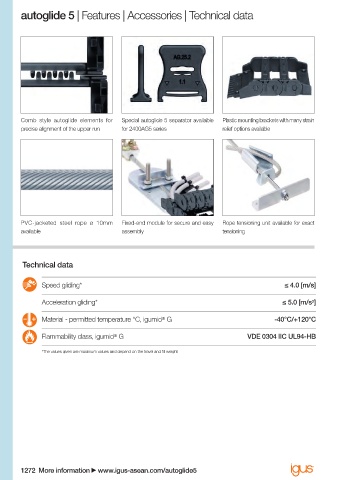

autoglide 5 | Features | Accessories | Technical data















                        Comb style autoglide elements for   Special autoglide 5 separator available   Plastic mounting brackets with many strain
                        precise alignment of the upper run  for 2400AG5 series  relief options available













                        PVC-jacketed steel rope ø  10mm   Fixed-end module for secure and easy   Rope tensioning unit available for exact
                        available                assembly                 tensioning



                        Technical data

                             Speed gliding*                                              ≤ 4.0 [m/s]

                             Acceleration gliding*                                       ≤ 5.0 [m/s ]
                                                                                                2
                                                           ®
                             Material - permitted temperature °C, igumid  G            -40°C/+120°C
                             Flammability class, igumid  G                      VDE 0304 IIC UL94-HB
                                               ®
                             *The values given are maximum values and depend on the travel and fi ll weight
















                       1272 More information   www.igus-asean.com/autoglide5
