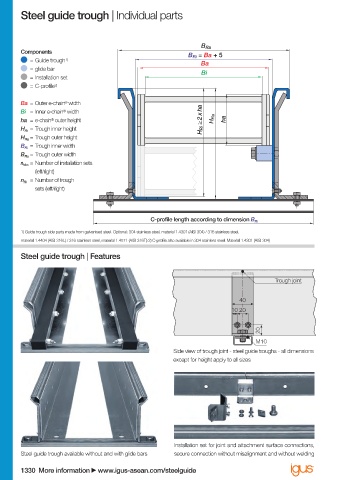

Steel guide trough | Individual parts

B Ra
Components
B Ri = Ba + 5
= Guide trough 1)
Ba
= glide bar
Bi
= Installation set
= C-profi le 2)
Ba = Outer e-chain ® width
Bi = Inner e-chain ® width
ha = e-chain ® outer height H Ri ≥ 2 x ha H Ra ha
H Ri = Trough inner height
H Ra = Trough outer height
B Ri = Trough inner width
B Ra = Trough outer width
n Mon = Number of installation sets
(left/right)
n Ri = Number of trough
sets (left/right)

C-profi le length according to dimension B Ri
1) Guide trough side parts made from galvanised steel. Optional: 304 stainless steel, material 1.4301 (AISI 304) / 316 stainless steel,
material 1.4404 (AISI 316L) / 316 stainless steel, material 1.4571 (AISI 316Ti) 2) C-profi le also available in 304 stainless steel. Material 1.4301 (AISI 304)

Steel guide trough | Features

Trough joint

40
10 20

20
M10
Side view of trough joint - steel guide troughs - all dimensions
except for height apply to all sizes

Installation set for joint and attachment surface connections,
Steel guide trough available without and with glide bars secure connection without misalignment and without welding
1330 More information www.igus-asean.com/steelguide
