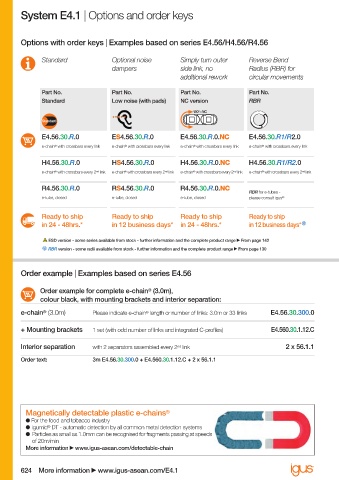

Page 626 - IGUS ECS CATALOG

System E4.1 | Options and order keys

Options with order keys | Examples based on series E4.56/H4.56/R4.56
Standard Optional noise Simply turn outer Reverse Bend
dampers side link, no Radius (RBR) for
additional rework circular movements
Part No. Part No. Part No. Part No.
Standard Low noise (with pads) NC version RBR
180$=NC

E4.56.30.R.0 ES4.56.30.R.0 E4.56.30.R.0.NC E4.56.30.R1/R2.0
e-chain ® with crossbars every link e-chain ® with crossbars every link e-chain ® with crossbars every link e-chain ® with crossbars every link
H4.56.30.R.0 HS4.56.30.R.0 H4.56.30.R.0.NC H4.56.30.R1/R2.0
e-chain ® with crossbars every 2 nd link e-chain ® with crossbars every 2 nd link e-chain ® with crossbars every 2 nd link e-chain ® with crossbars every 2 nd link
R4.56.30.R.0 RS4.56.30.R.0 R4.56.30.R.0.NC
RBR for e-tubes -
e-tube, closed e-tube, closed e-tube, closed please consult igus ®

Ready to ship Ready to ship Ready to ship Ready to ship
in 24 - 48hrs.* in 12 business days* in 24 - 48hrs.* in 12 business days*
ESD version - some series available from stock - further information and the complete product range From page 142
RBR version - some radii available from stock - further information and the complete product range From page 130

Order example | Examples based on series E4.56

Order example for complete e-chain (3.0m),
®
colour black, with mounting brackets and interior separation:
e-chain (3.0m) Please indicate e-chain ® length or number of links: 3.0m or 33 links E4.56.30.300.0
®
+ Mounting brackets 1 set (with odd number of links and integrated C-profi les) E4.560.30.1.12.C

Interior separation with 2 separators assembled every 2 nd link 2 x 56.1.1
Order text: 3m E4.56.30.300.0 + E4.560.30.1.12.C + 2 x 56.1.1

Magnetically detectable plastic e-chains ®
● For the food and tobacco industry
● igumid ® DT - automatic detection by all common metal detection systems
● Particles as small as 1.0mm can be recognised for fragments passing at speeds
of 20m/min
More information www.igus-asean.com/detectable-chain
