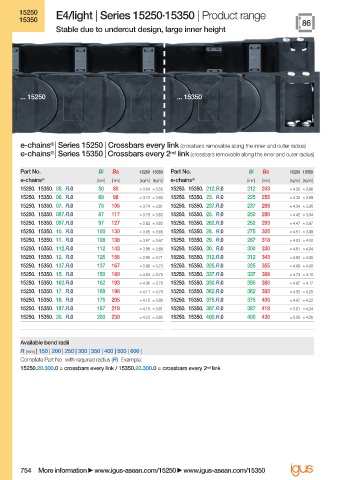

15250 E4/light | Series 15250·15350 | Product range
15350 86
Stable due to undercut design, large inner height

... 15250 ... 15350

®
e-chains | Series 15250 | Crossbars every link (crossbars removable along the inner and outer radius)
®
nd
e-chains | Series 15350 | Crossbars every 2 link (crossbars removable along the inner and outer radius)
Part No. Bi Ba 15250 15350 Part No. Bi Ba 15250 15350
e-chains ® [mm] [mm] [kg/m] [kg/m] e-chains ® [mm] [mm] [kg/m] [kg/m]
15250. 15350. 05. R.0 50 80 ≈ 3.64 ≈ 3.56 15250. 15350. 212.R.0 212 243 ≈ 4.26 ≈ 3.86
15250. 15350. 06. R.0 68 98 ≈ 3.72 ≈ 3.60 15250. 15350. 23. R.0 225 255 ≈ 4.32 ≈ 3.89
15250. 15350. 07. R.0 75 105 ≈ 3.74 ≈ 3.61 15250. 15350. 237.R.0 237 268 ≈ 4.34 ≈ 3.90
15250. 15350. 087.R.0 87 117 ≈ 3.79 ≈ 3.63 15250. 15350. 25. R.0 250 280 ≈ 4.42 ≈ 3.94
15250. 15350. 097.R.0 97 127 ≈ 3.83 ≈ 3.65 15250. 15350. 262.R.0 262 293 ≈ 4.47 ≈ 3.97
15250. 15350. 10. R.0 100 130 ≈ 3.85 ≈ 3.66 15250. 15350. 28. R.0 275 305 ≈ 4.51 ≈ 3.99
15250. 15350. 11. R.0 108 138 ≈ 3.87 ≈ 3.67 15250. 15350. 29. R.0 287 318 ≈ 4.53 ≈ 4.00
15250. 15350. 112.R.0 112 143 ≈ 3.88 ≈ 3.68 15250. 15350. 30. R.0 300 330 ≈ 4.61 ≈ 4.04
15250. 15350. 12. R.0 125 155 ≈ 3.95 ≈ 3.71 15250. 15350. 312.R.0 312 343 ≈ 4.63 ≈ 4.05
15250. 15350. 137.R.0 137 167 ≈ 3.98 ≈ 3.73 15250. 15350. 325.R.0 325 355 ≈ 4.69 ≈ 4.08
15250. 15350. 15. R.0 150 180 ≈ 4.04 ≈ 3.75 15250. 15350. 337.R.0 337 368 ≈ 4.73 ≈ 4.10
15250. 15350. 162.R.0 162 193 ≈ 4.06 ≈ 3.76 15250. 15350. 350.R.0 350 380 ≈ 4.87 ≈ 4.17
15250. 15350. 17. R.0 168 198 ≈ 4.11 ≈ 3.79 15250. 15350. 362. R.0 362 393 ≈ 4.92 ≈ 4.20
15250. 15350. 18. R.0 175 205 ≈ 4.12 ≈ 3.80 15250. 15350. 375.R.0 375 405 ≈ 4.97 ≈ 4.22
15250. 15350. 187.R.0 187 218 ≈ 4.15 ≈ 3.81 15250. 15350. 387.R.0 387 418 ≈ 5.01 ≈ 4.24
15250. 15350. 20. R.0 200 230 ≈ 4.23 ≈ 3.85 15250. 15350. 400.R.0 400 430 ≈ 5.05 ≈ 4.26

Available bend radii
R [mm] | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 |
Complete Part No. with required radius (R). Example:
15250.20.300.0 = crossbars every link / 15350.20.300.0 = crossbars every 2 nd link

754 More information www.igus-asean.com/15250 www.igus-asean.com/15350
