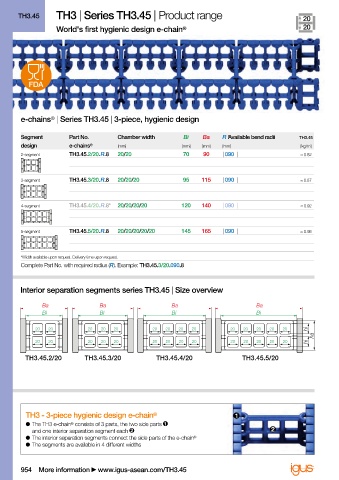

TH3.45 TH3 | Series TH3.45 | Product range 20
World's first hygienic design e-chain ® 20

e-chains | Series TH3.45 | 3-piece, hygienic design
®
Segment Part No. Chamber width Bi Ba R lAvailable bend radii TH3.45
design e-chains ® [mm] [mm] [mm] [mm] [kg/m]
2-segment TH3.45.2/20.R.8 20/20 70 90 | 090 | ≈ 0.82

3-segment TH3.45.3/20.R.8 20/20/20 95 115 | 090 | ≈ 0.87

4-segment TH3.45.4/20.R.8* 20/20/20/20 120 140 | 090 | ≈ 0.92

5-segment TH3.45.5/20.R.8 20/20/20/20/20 145 165 | 090 | ≈ 0.98

*Width available upon request. Delivery time upon request.
Complete Part No. with required radius (R). Example: TH3.45.3/20.090.8

Interior separation segments series TH3.45 | Size overview
Ba Ba Ba Ba
Bi Bi Bi Bi
20 20 20 20 20 20 20 20 20 20 20 20 20 20 hi
ha
20 20 20 20 20 20 20 20 20 20 20 20 20 20 hi

TH3.45.2/20 TH3.45.3/20 TH3.45.4/20 TH3.45.5/20

TH3 - 3-piece hygienic design e-chain ®
● The TH3 e-chain ® consists of 3 parts, the two side parts
and one interior separation segment each
● The interior separation segments connect the side parts of the e-chain ®
● The segments are available in 4 diff erent widths

954 More information www.igus-asean.com/TH3.45
