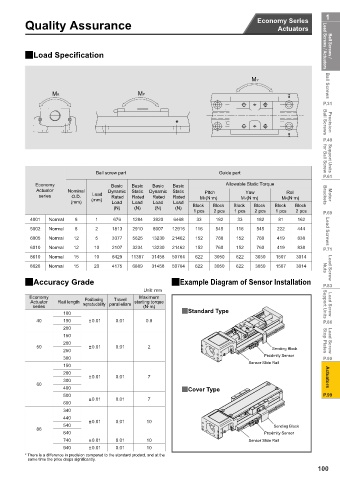

Page 103 - MiSUMi FA Mechanical Components Economy Series

1
Economy Series
Quality Assurance Actuators

2Load Specification Lead Screws / Actuators Ball Screws /

MY Ball Screws

MR MP
P.31

Precision
Ball Screws
P.49

Ball screw part Guide part for Ball Screw Support Units
P.61
Economy Basic Basic Basic Basic Allowable Static Torque
Actuator Nominal Dynamic Static Dynamic Static Pitch Yaw Roll
series O.D. Lead Rated Rated Rated Rated MP(N·m) MY(N·m) MR(N·m) Brackets Motor
(mm) (mm) Load Load Load Load
(N) (N) (N) (N) Block Block Block Block Block Block
1pcs 2pcs 1pcs 2pcs 1pcs 2pcs P.69
4001 Normal 8 1 676 1284 3920 6468 33 182 33 182 81 162
5002 Normal 8 2 1813 2910 8007 12916 116 545 116 545 222 444 Lead Screws
6005 Normal 12 5 3377 5625 13230 21462 152 760 152 760 419 838
6010 Normal 12 10 2107 3234 13230 21462 152 760 152 760 419 838 P.71
8610 Normal 15 10 6429 11387 31458 50764 622 3050 622 3050 1507 3014
8620 Normal 15 20 4175 6889 31458 50764 622 3050 622 3050 1507 3014 Nuts Lead Screw

2Accuracy Grade 2Example Diagram of Sensor Installation
P.83
Unit: mm
Economy Positioning Travel Maximum
Actuator Rail length reproducibility parallelism starting torque
series (N·m) Support Units Lead Screw
100 2Standard Type
40 150 ±0.01 0.01 0.8 P.86
200
150
200 Stop Plates Lead Screw
50 ±0.01 0.01 2 Sending Block
250
Proximity Sensor
300 P.90
Sensor Slide Rail
150
200
±0.01 0.01 7 Actuators
300
60
400 2Cover Type
500 P.99
±0.01 0.01 7
600
340
440
±0.01 0.01 10
540 Sending Block
86
640 Proximity Sensor
740 ±0.01 0.01 10 Sensor Slide Rail
940 ±0.01 0.01 10
* There is a difference in precision compared to the standard product, and at the
same time the price drops significantly.
