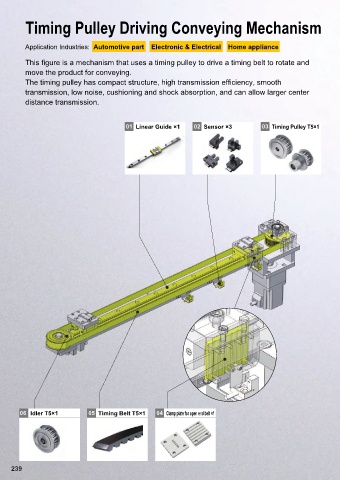

Timing Pulley Driving Conveying Mechanism

Application Industries: Automotive part Electronic & Electrical Home appliance

This figure is a mechanism that uses a timing pulley to drive a timing belt to rotate and
move the product for conveying.
The timing pulley has compact structure, high transmission efficiency, smooth
transmission, low noise, cushioning and shock absorption, and can allow larger center
distance transmission.

01 Linear Guide ×1 02 Sensor ×3 03 Timing Pulley T5×1

06 Idler T5×1 05 Timing Belt T5×1 04 Clampplateforopenendbelt×1
