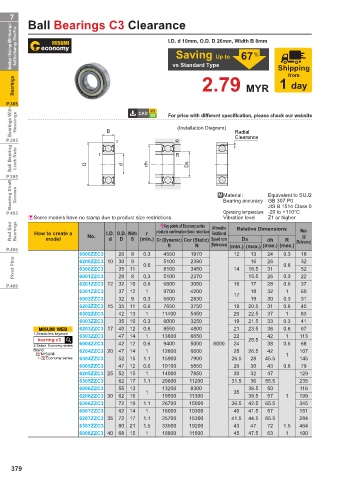

Page 382 - MiSUMi FA Mechanical Components Economy Series

7 Ball Bearings C3 Clearance
Bearings / Bearings With Housings / Rod End Bearings / Pivot Pins I.D. d 10mm, O.D. D 26mm, Width B 8mm

67
%
Saving Up to
vs Standard Type
Shipping
from
Bearings 2.79 MYR 1 day

P.365
Bearings With Housings For price with different specification, please check our website

(Installation Diagram)
Clearance
P.393 B r R Radial
Ball Bearing Lock Nuts D r d dh R Ds

P.395
Bearing Shaft Screws . Material: Equivalent to SUJ2

Bearing accuracy GB 307 P0
JIS B 1514 Class 0
P.403 Operating temperature -20 to +110°C
&Some models have no stamp due to product size restrictions. Vibration level Z1 or higher
Rod End Bearings How to create a No. I.D. O.D. Width r products confirmation Basic rated load Allowable Relative Dimensions Mass
&Key points of Economy series
Rotational
(g)
B
Speed rpm
d
model
D
Ds
(min.) Cr (Dynamic) Cor (Static)
dh
R
N N (Reference) (min.) (max.) (max.) (max.) (Reference)
P.405
6000ZZC3 26 8 0.3 4550 1970 12 13 24 0.3 18
Pivot Pins 6200ZZC3 10 30 11 0.6 5100 2390 14 16.5 26 0.6 32
9
16
35
31
8100
6300ZZC3
3450
52
26
2370
5100
15.5
0.3
22
0.3
6001ZZC3
8
28
P.409 6201ZZC3 12 32 10 0.6 6800 3050 16 17 28 0.6 37
6301ZZC3 37 12 1 9700 4200 18 32 1 60
6002ZZC3 32 9 0.3 5600 2830 17 19 30 0.3 31
6202ZZC3 15 35 11 0.6 7650 3750 19 20.5 31 0.6 45
6302ZZC3 42 13 1 11400 5450 20 22.5 37 1 83
6003ZZC3 35 10 0.3 6000 3250 19 21.5 33 0.3 41
MISUMI WEB 6203ZZC3 17 40 12 0.6 9550 4800 21 23.5 36 0.6 67
1.Search this keyword 6303ZZC3 47 14 1 13600 6650 22 42 1 113
bearing c3 25.5
2.Select Economy series 6004ZZC3 42 12 0.6 9400 5000 8000 24 38 0.6 68
Brand 6204ZZC3 20 47 14 1 12800 6600 25 26.5 42 107
MISUMI 1
Economy series 6304ZZC3 52 15 1.1 15900 7900 26.5 28 45.5 145
6005ZZC3 47 12 0.6 10100 5850 29 30 43 0.6 79
6205ZZC3 25 52 15 1 14000 7850 30 32 47 129
6305ZZC3 62 17 1.1 20600 11200 31.5 36 55.5 235
6006ZZC3 55 13 13200 8300 36.5 50 116
1 35
6206ZZC3 30 62 16 19500 11300 38.5 57 1 199
6306ZZC3 72 19 1.1 26700 15000 36.5 42.5 65.5 345
6007ZZC3 62 14 1 16000 10300 40 41.5 57 151
6207ZZC3 35 72 17 1.1 25700 15300 41.5 44.5 65.5 284
6307ZZC3 80 21 1.5 33500 19200 43 47 72 1.5 464
6008ZZC3 40 68 15 1 16800 11500 45 47.5 63 1 190
