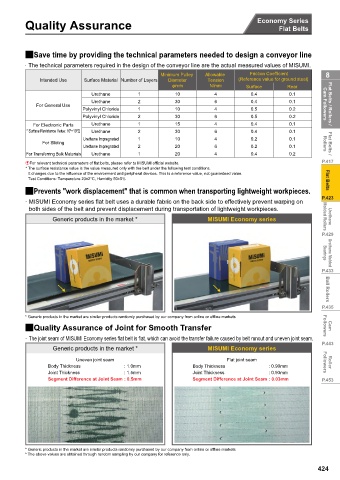

Quality Assurance Economy Series
Flat Belts

2Save time by providing the technical parameters needed to design a conveyor line
· The technical parameters required in the design of the conveyor line are the actual measured values of MISUMI.
Minimum Pulley Allowable Friction Coefficient 8
Intended Use Surface Material Number of Layers Diameter Tension (Reference value for ground steel)
Пmm N/mm Surface Rear
Urethane 1 10 4 0.4 0.1
Urethane 2 30 6 0.4 0.1
For General Use Cam Followers Flat Belts / Rollers /
Polyvinyl Chloride 1 10 4 0.5 0.2
Polyvinyl Chloride 2 30 6 0.5 0.2
For Electronic Parts Urethane 1 15 4 0.4 0.1
* Surface Resistance Value: 10๤~10ແȍ Urethane 2 30 6 0.4 0.1
Urethane Impregnated 1 10 4 0.2 0.1
For Sliding Rollers Flat Belts /
Urethane Impregnated 2 20 6 0.2 0.1
For Transferring Bulk Materials Urethane 1 20 4 0.4 0.2
&For relevant technical parameters of flat belts, please refer to MISUMI official website. P.417
* The surface resistance value is the value measured only with the belt under the following test conditions.
It changes due to the influence of the environment and peripheral devices. This is a reference value, not guaranteed value.
Test Conditions: Temperature 23±2°C, Humidity 50±5% Flat Belts
2Prevents "work displacement" that is common when transporting lightweight workpieces.
P.423
· MISUMI Economy series flat belt uses a durable fabric on the back side to effectively prevent warping on
both sides of the belt and prevent displacement during transportation of lightweight workpieces.
Generic products in the market * MISUMI Economy series Molded Rollers Urethane

P.429

Bearings
Urethane Molded
P.433

Ball Rollers
P.435
* Generic products in the market are similar products randomly purchased by our company from online or offline markets
2Quality Assurance of Joint for Smooth Transfer Followers Cam

· The joint seam of MISUMI Economy series flat belt is flat, which can avoid the transfer failure caused by belt runout and uneven joint seam.
P.443
Generic products in the market * MISUMI Economy series
Uneven joint seam Flat joint seam
Body Thickness : 1.0mm Body Thickness : 0.90mm Followers Roller
Joint Thickness : 1.5mm Joint Thickness : 0.93mm
Segment Difference at Joint Seam : 0.5mm Segment Difference at Joint Seam : 0.03mm P.453

* Generic products in the market are similar products randomly purchased by our company from online or offline markets
* The above values are obtained through random sampling by our company for reference only.
