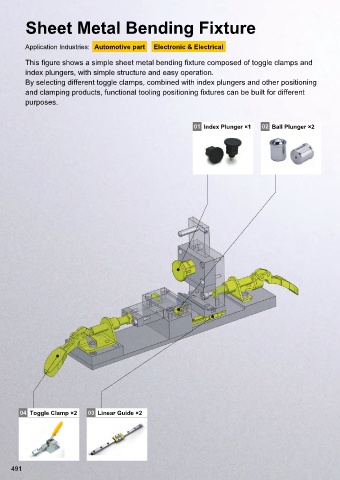

Sheet Metal Bending Fixture

Application Industries: Automotive part Electronic & Electrical

This figure shows a simple sheet metal bending fixture composed of toggle clamps and
index plungers, with simple structure and easy operation.
By selecting different toggle clamps, combined with index plungers and other positioning
and clamping products, functional tooling positioning fixtures can be built for different
purposes.

01 Index Plunger ×1 02 Ball Plunger ×2

04 Toggle Clamp ×2 03 Linear Guide ×2
