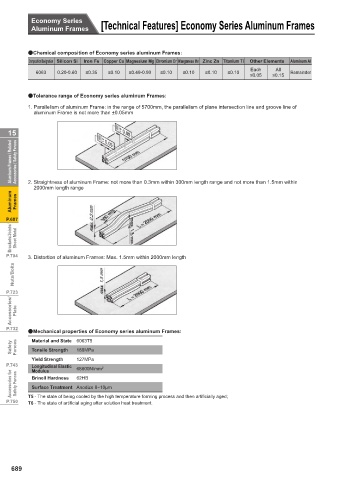

Aluminum Frames [Technical Features] Economy Series Aluminum Frames

*Chemical composition of Economy series aluminum Frames:
Composition Designation Silicon Si Iron Fe Copper Cu Magnesium Mg Chromium Cr Manganese Mn Zinc Zn Titanium Ti Other Elements Aluminum Al
Each All
6063 0.20-0.60 ≤0.35 ≤0.10 ≤0.49-0.90 ≤0.10 ≤0.10 ≤0.10 ≤0.10 Remainder
≤0.05 ≤0.15

*Tolerance range of Economy series aluminum Frames:
1. Parallelism of aluminum Frame: in the range of 5700mm, the parallelism of plane intersection line and groove line of
aluminum Frame is not more than ±0.05mm

15
Aluminum Frames / Related Accessories / Safety Fences

2. Straightness of aluminum Frame: not more than 0.3mm within 300mm length range and not more than 1.5mm within
2000mm length range
Aluminum Frames

P.687
Brackets/Joints/ Sheet Metal

P.704 3. Distortion of aluminum Frames: Max. 1.5mm within 2000mm length
Nuts/Bolts

P.723
Accessories/ Plate

P.732
*Mechanical properties of Economy series aluminum Frames:
Safety Fences Material and State 6063T5
Tensile Strength
180MPa
Yield Strength 127MPa
P.743 Longitudinal Elastic 68600N/mm 2
Modulus
Accessories for Safety Fences Brinell Hardness 62HB
Surface Treatment Anodize 8~10μm

P.750 T5 - The state of being cooled by the high temperature forming process and then artifi cially aged;
T6 - The state of artifi cial aging after solution heat treatment.
