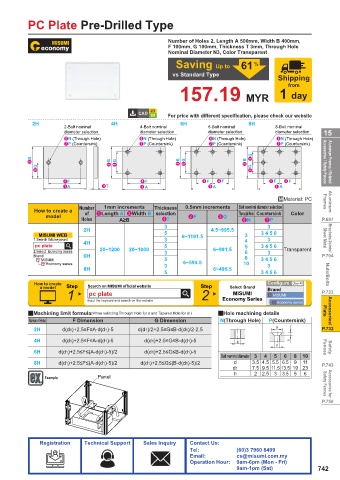

Page 745 - MiSUMi FA Mechanical Components Economy Series

PC Plate Pre-Drilled Type

Number of Holes 2, Length A 500mm, Width B 400mm,
F 100mm, G 100mm, Thickness T 3mm, Through Hole
Nominal Diameter N3, Color Transparent

Saving Up to 61 %
vs Standard Type
Shipping
from
157.19 MYR 1 day

For price with different specification, please check our website
2H 4H 6H 8H
2-Bolt nominal 4-Bolt nominal 6-Bolt nominal 8-Bolt nominal
diameter selection diameter selection diameter selection diameter selection 15
N (Through Hole) N (Through Hole) N (Through Hole) N (Through Hole)
P (Countersink) P (Countersink) P (Countersink) P (Countersink)

B B G B G B G Accessories / Safety Fences Aluminum Frames / Related
G G

F F F F F F
A T A A A
.Material: PC Frames Aluminum
Number 1mm increments Thickness 0.5mm increments Bolt nominal diameter selection
How to create a of Length A Width B selection Through Hole Countersink Color
model F G
Holes A≥B T N P P.687
3 3
2H 4.5~995.5
MISUMI WEB 5 6~1191.5 3 3 4 5 6
1.Search this keyword 3 4 3 Sheet Metal Brackets/Joints/
pc plate 4H 5 5 3 4 5 6
2.Select Economy series 20~1200 20~1000 3 6~991.5 6 3 Transparent
Brand 6H 8 P.704
MISUMI 5 3 4 5 6
Economy series 3 6~595.5 10 3
8H 6~495.5
5 3 4 5 6 Nuts/Bolts
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 pc plate 2 MISUMI MISUMI P.723
Economy Series
Input the keyword and search on the website
Economy series
2Machining limit formula(When selecting Through Hole for d and Tapered Hole for d1) 2Hole machining details Plate Accessories/
Number of Holes F Dimension G Dimension N(Through Hole) P(Countersink)
2H d(d1)+2.5≤F≤A-d(d1)-5 d(d1)/2+2.5≤G≤B-d(d1)/2-2.5 d1 P.732
4H d(d1)+2.5≤F≤A-d(d1)-5 d(d1)+2.5≤G≤B-d(d1)-5 d h
d Fences Safety
6H d(d1)+2.5≤F≤(A-d(d1)-5)/2 d(d1)+2.5≤G≤B-d(d1)-5
Bolt nominal diameter 3 4 5 6 8 10
8H d(d1)+2.5≤F≤(A-d(d1)-5)/2 d(d1)+2.5≤G≤(B-d(d1)-5)/2 d 3.5 4.5 5.5 6.5 9 11 P.743
d1 7.5 9.5 11.5 13.5 19 23
h 2 2.5 3 3.5 5 6
Example Panel Safety Fences Accessories for

P.750
