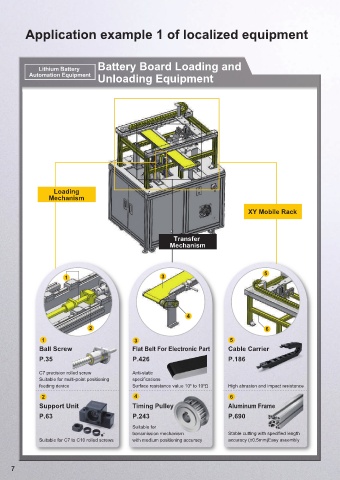

Application example 1 of localized equipment

Battery Board Loading and
Lithium Battery
Automation Equipment
Unloading Equipment

Loading
Mechanism
XY Mobile Rack

Transfer
Mechanism

5

4

6
5
Ball Screw Flat Belt For Electronic Part Cable Carrier
P.35 P.426 P.186

C7 precision rolled screw Anti-static
Suitable for multi-point positioning specifications
8
6
feeding device Surface resistance value 10 to 10 ȍ High abrasion and impact resistance
4 6
Support Unit Timing Pulley Aluminum Frame
P.63 P.243 P.690

Suitable for
transmission mechanism Stable cutting with specified length
Suitable for C7 to C10 rolled screws with medium positioning accuracy accuracy (±0.5mm)Easy assembly

7
