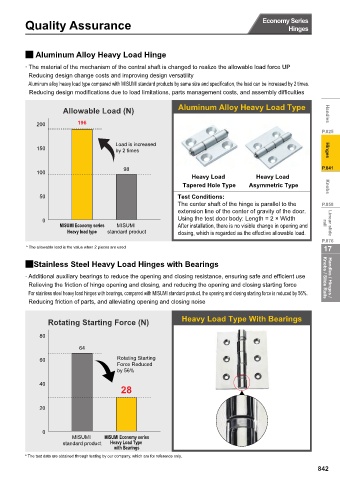

Quality Assurance Economy Series
Hinges

2 Aluminum Alloy Heavy Load Hinge
· The material of the mechanism of the central shaft is changed to realize the allowable load force UP
Reducing design change costs and improving design versatility
Aluminum alloy heavy load type compared with MISUMI standard products by same size and specification, the load can be increased by 2 times.
Reducing design modifications due to load limitations, parts management costs, and assembly difficulties
Aluminum Alloy Heavy Load Type
Allowable Load (N) Handles

200 196
P.825
Load is increased
150 by 2 times Hinges

98 P.841
100
Heavy Load Heavy Load
Tapered Hole Type Asymmetric Type Knobs
50 Test Conditions:
The center shaft of the hinge is parallel to the P.858
extension line of the center of gravity of the door.
0 Using the test door body: Length = 2 × Width
MISUMI Economy series MISUMI After installation, there is no visible change in opening and rail Linear slide
Heavy load type standard product closing, which is regarded as the effective allowable load.
P.876
* The allowable load is the value when 2 pieces are used 17
2Stainless Steel Heavy Load Hinges with Bearings

· Additional auxiliary bearings to reduce the opening and closing resistance, ensuring safe and efficient use Knobs / Slide Rails Handles / Hinges /
Relieving the friction of hinge opening and closing, and reducing the opening and closing starting force
For stainless steel heavy load hinges with bearings, compared with MISUMI standard product, the opening and closing starting force is reduced by 56%.
Reducing friction of parts, and alleviating opening and closing noise

Heavy Load Type With Bearings
Rotating Starting Force (N)
80
64

60 Rotating Starting
Force Reduced
by 56%
40
28

20

0
MISUMI MISUMI Economy series
standard product Heavy Load Type
with Bearings
* The test data are obtained through testing by our company, which are for reference only.
