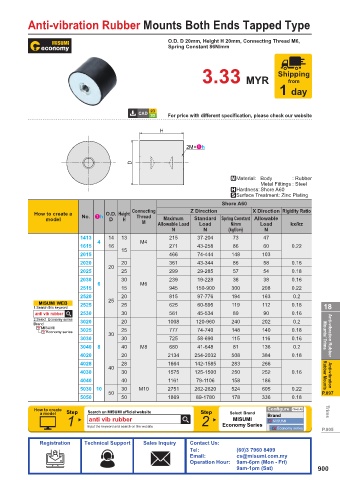

Page 903 - MiSUMi FA Mechanical Components Economy Series

Anti-vibration Rubber Mounts Both Ends Tapped Type

O.D. D 20mm, Height H 20mm, Connecting Thread M6,
Spring Constant 86N/mm

Shipping
3.33 MYR from

1 day

For price with different specification, please check our website

H

2M× h

D
.Material: Body : Rubber
Metal Fittings : Steel
)Hardness: Shore A60
4Surface Treatment: Zinc Plating
Shore A60
Connecting Z Direction X Direction Rigidity Ratio
How to create a O.D. Height
model No. h D H Thread Maximum Standard Spring Constant Allowable
M Allowable Load Load N/mm Load kx/kz
N N {kgf/cm} N
1413 14 13 215 37-204 73 47
4 M4
1615 16 271 43-258 86 60 0.22
15
2015 466 74-444 148 103
2020 20 361 43-344 86 58 0.16
20
2025 25 299 29-285 57 54 0.18
2030 30 239 19-228 38 38 0.16
6 M6
2515 15 945 150-900 300 208 0.22
2520 20 815 97-776 194 163 0.2
MISUMI WEB 25
1.Search this keyword 2525 25 625 60-595 119 112 0.18 18
anti vib rubber 2530 30 561 45-534 89 90 0.16
2.Select Economy series
Brand 3020 20 1008 120-960 240 202 0.2
MISUMI
Economy series 3025 30 25 777 74-740 148 140 0.18
3030 30 725 58-690 115 116 0.16 Mounts/ Trims Anti-vibration Rubber
3040 8 40 M8 680 41-648 81 136 0.2
4020 20 2134 254-2032 508 384 0.18
4028 28 1664 142-1585 283 266
40
4030 30 1575 125-1500 250 252 0.16 Rubber Mounts Anti-vibration
4040 40 1161 79-1106 158 186
5030 10 30 M10 2751 262-2620 524 605 0.22
50 P.897
5050 50 1869 89-1780 178 336 0.18
