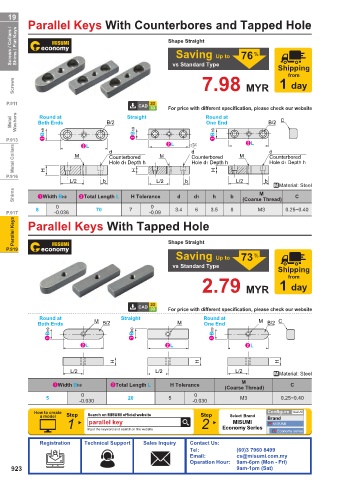

Page 926 - MiSUMi FA Mechanical Components Economy Series

19 Parallel Keys With Counterbores and Tapped Hole
Screws / Collars / Shims / Flat Keys Shape Straight 76 %

Saving Up to
vs Standard Type
Shipping
from
Screws 7.98 MYR 1 day

P.911
For price with different specification, please check our website
Round at
Metal Washers Both Ends B/2 Straight Round at B/2 C
One End
P.913 Bh9 L Bh9 L 25 Bh9 L
Metal Collars M d M d M d
Counterbored
Counterbored
Counterbored
Hole d1 Depth h
Hole d1 Depth h
Hole d1 Depth h
P.916 H H H
L/2 b L/2 b L/2 b
.Material: Steel
Shims Width Bh9 Total Length L H Tolerance d d1 h b (Coarse Thread) C
M
0 0
8 70 7 3.4 6 3.5 8 M3 0.25~0.40
P.917 -0.036 -0.09
Parallel Keys Parallel Keys With Tapped Hole

P.919 Shape Straight
Saving Up to 73 %
vs Standard Type
Shipping
from
2.79 MYR 1 day

For price with different specification, please check our website
Round at Straight Round at
Both Ends M B/2 M One End M B/2 C
Bh9 Bh9 Bh9

L L L

H H H
L/2 L/2 L/2
.Material: Steel
M
Width Bh9 Total Length L H Tolerance C
(Coarse Thread)
0 0
5 20 5 M3 0.25~0.40
-0.030 -0.030
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 parallel key 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
