iglidur J3
®
+90°C
45MPa

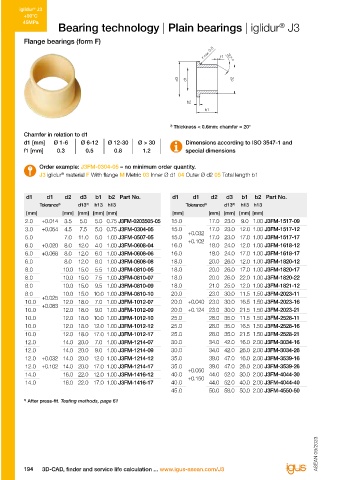

Bearing technology | Plain bearings | iglidur J3
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: J3FM-0304-05 – no minimum order quantity.
J3 iglidur material F With flange M Metric 03 Inner Ø d1 04 Outer Ø d2 05 Total length b1 Proven long-life material in black
®
Wear-resistant endurance runner
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] up to 10MPa
2.0 +0.014 3.5 5.0 5.0 0.75 J3FM-0203505-05 15.0 17.0 23.0 9.0 1.00 J3FM-1517-09
3.0 +0.054 4.5 7.5 5.0 0.75 J3FM-0304-05 15.0 +0.032 17.0 23.0 12.0 1.00 J3FM-1517-12 ®
5.0 7.0 11.0 5.0 1.00 J3FM-0507-05 15.0 +0.102 17.0 23.0 17.0 1.00 J3FM-1517-17 iglidur J3B
6.0 +0.020 8.0 12.0 4.0 1.00 J3FM-0608-04 16.0 18.0 24.0 12.0 1.00 J3FM-1618-12
6.0 +0.068 8.0 12.0 6.0 1.00 J3FM-0608-06 16.0 18.0 24.0 17.0 1.00 J3FM-1618-17
6.0 8.0 12.0 8.0 1.00 J3FM-0608-08 18.0 20.0 26.0 12.0 1.00 J3FM-1820-12
8.0 10.0 15.0 5.5 1.00 J3FM-0810-05 18.0 20.0 26.0 17.0 1.00 J3FM-1820-17 When to use it?
8.0 10.0 15.0 7.5 1.00 J3FM-0810-07 18.0 20.0 26.0 22.0 1.00 J3FM-1820-22 ● When optimising wear resistance compared to iglidur J
®
8.0 10.0 15.0 9.5 1.00 J3FM-0810-09 18.0 21.0 25.0 12.0 1.00 J3FM-1821-12 ● When low moisture absorption is fundamental
8.0 +0.025 10.0 15.0 10.0 1.00 J3FM-0810-10 20.0 23.0 30.0 11.5 1.50 J3FM-2023-11 ● When good liquid media resistance is required
10.0 +0.083 12.0 18.0 7.0 1.00 J3FM-1012-07 20.0 +0.040 23.0 30.0 16.5 1.50 J3FM-2023-16 ● When high wear resistance at low loads is required
10.0 12.0 18.0 9.0 1.00 J3FM-1012-09 20.0 +0.124 23.0 30.0 21.5 1.50 J3FM-2023-21 ● When very low coefficient of friction in dry operation are required
10.0 12.0 18.0 10.0 1.00 J3FM-1012-10 25.0 28.0 35.0 11.5 1.50 J3FM-2528-11
10.0 12.0 18.0 12.0 1.00 J3FM-1012-12 25.0 28.0 35.0 16.5 1.50 J3FM-2528-16
10.0 12.0 18.0 17.0 1.00 J3FM-1012-17 25.0 28.0 35.0 21.5 1.50 J3FM-2528-21
12.0 14.0 20.0 7.0 1.00 J3FM-1214-07 30.0 34.0 42.0 16.0 2.00 J3FM-3034-16 When not to use it?
12.0 14.0 20.0 9.0 1.00 J3FM-1214-09 30.0 34.0 42.0 26.0 2.00 J3FM-3034-26 ● When a wear-resistant plain bearing for linear motion is required
12.0 +0.032 14.0 20.0 12.0 1.00 J3FM-1214-12 35.0 39.0 47.0 16.0 2.00 J3FM-3539-16 iglidur J
®
12.0 +0.102 14.0 20.0 17.0 1.00 J3FM-1214-17 35.0 +0.050 39.0 47.0 26.0 2.00 J3FM-3539-26 ● When permanent temperatures exceed +90°C
14.0 16.0 22.0 12.0 1.00 J3FM-1416-12 40.0 +0.150 44.0 52.0 30.0 2.00 J3FM-4044-30 iglidur J260
®
14.0 16.0 22.0 17.0 1.00 J3FM-1416-17 40.0 44.0 52.0 40.0 2.00 J3FM-4044-40 ● When radial surface pressure is higher than 45MPa
45.0 50.0 58.0 50.0 2.00 J3FM-4550-50 iglidur W300
®
3) After press-fit. Testing methods, page 61

ASEAN 09/2023 ASEAN 09/2023

194 3D-CAD, finder and service life calculation ... www.igus-asean.com/J3
