P. 242

iglidur  L350                                                                                                                                                                                                            iglidur  L350
                                                                                                                                                                                                                                     ®
            ®
         +180 °C                                                                                                                                                                                                                  +180 °C
          59MPa                                                                                                                                                                                                                   59MPa
                      Bearing technology | Plain bearings | iglidur  L350                                                           Bearing technology | Plain bearings | iglidur  L350
                                                                                                                                                                                                                ®
                                                                                                  ®

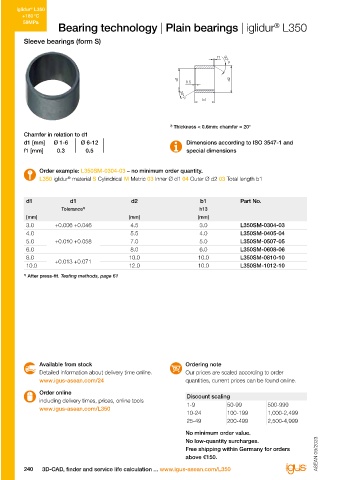

          Sleeve bearings (form S)                                                                                                  Flange bearings (form F)
                                                                                                                                                                                                   r max. 0.5
                                                                              f1  30°                                                                                                                    f1  30°



                                                                d1  0.5           d2                                                                                                      d3  d1             d2


                                                                 30°
                                                                         b1                                                                                                                  b2
                                                                                                                                                                                                   b1


                                                             2)  Thickness < 0.6mm: chamfer = 20°                                                                                      2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 Chamfer in relation to d1
          d1 [mm]   Ø 1-6     Ø 6-12                               Dimensions according to ISO 3547-1 and                           d1 [mm]   Ø 1-6     Ø 6-12                              Dimensions according to ISO 3547-1 and
          f1 [mm]    0.3       0.5                                 special dimensions                                               f1 [mm]    0.3       0.5                                special dimensions



               Order example: L350SM-0304-03 – no minimum order quantity.                                                                Order example: L350FM-0304-05 – no minimum order quantity.
               L350 iglidur  material S Cylindrical M Metric 03 Inner Ø d1 04 Outer Ø d2 03 Total length b1                              L350 iglidur  material F With flange M Metric 03 Inner Ø d1 04 Outer Ø d2 05 Total length b1
                         ®
                                                                                                                                                   ®

           d1             d1                   d2                       b1            Part No.                                      d1              d1              d2           d3           b1           b2      Part No.
                       Tolerance 3)                                    h13                                                                       Tolerance 3)                   d13 3)       h13          h13
           [mm]                                [mm]                    [mm]                                                         [mm]                           [mm]         [mm]         [mm]         [mm]
           3.0       +0.006 +0.046             4.5                     3.0            L350SM-0304-03                                3.0        +0.006 +0.046       4.5          7.5          5.0          0.75     L350FM-0304-05
           4.0                                 5.5                     4.0            L350SM-0405-04                                4.0                            5.5          9.5          6.0          0.75     L350FM-0405-06
           5.0       +0.010 +0.058             7.0                     5.0            L350SM-0507-05                                5.0        +0.010 +0.058       7.0          11.0         7.0          1.00     L350FM-0507-07
           6.0                                 8.0                     6.0            L350SM-0608-06                                6.0                            8.0          12.0         8.0          1.00     L350FM-0608-08
           8.0       +0.013 +0.071             10.0                    10.0           L350SM-0810-10                                8.0        +0.013 +0.071       10.0         15.0         9.0          1.00     L350FM-0810-09
           10.0                                12.0                    10.0           L350SM-1012-10                                10.0                           12.0         18.0         9.0          1.00     L350FM-1012-09
          3)  After press-fit. Testing methods, page 61                                                                             3)  After press-fit. Testing methods, page 61

















               Available from stock                                Ordering note                                                         Available from stock                               Ordering note
               Detailed information about delivery time online.    Our prices are scaled according to order                              Detailed information about delivery time online.   Our prices are scaled according to order
               www.igus-asean.com/24                               quantities, current prices can be found online.                       www.igus-asean.com/24                              quantities, current prices can be found online.
               Order online                                        Discount scaling                                                      Order online                                        Discount scaling
               including delivery times, prices, online tools      1-9           50-99         500-999                                   including delivery times, prices, online tools      1-9           50-99         500-999
               www.igus-asean.com/L350                                                                                                   www.igus-asean.com/L350
                                                                   10-24         100-199       1,000-2,499                                                                                   10-24         100-199       1,000-2,499
                                                                   25-49         200-499       2,500-4,999                                                                                   25-49         200-499       2,500-4,999
                                                                   No minimum order value.                                                                                                  No minimum order value.
                                                                   No low-quantity surcharges.                                                                                              No low-quantity surcharges.
                                                                   Free shipping within Germany for orders                                                                                  Free shipping within Germany for orders
                                                                   above €150.                                   ASEAN 09/2023   ASEAN 09/2023                                              above €150.
