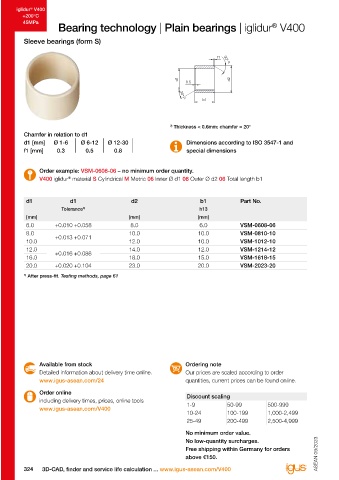

Page 326 - IGUS Bearing

iglidur V400 iglidur V400
®
®
+200°C +200°C
45MPa 45MPa
Bearing technology | Plain bearings | iglidur V400 Bearing technology | Plain bearings | iglidur V400
®
®
Sleeve bearings (form S) Flange bearings (form F)
r max. 0.5
f1 30° f1 30°

d1 0.5 d2 d3 d1 d2

30°
b1 b2
b1

2) Thickness < 0.6mm: chamfer = 20° 2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Dimensions according to ISO 3547-1 and d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 special dimensions f1 [mm] 0.3 0.5 0.8 special dimensions

Order example: VSM-0608-06 – no minimum order quantity. Order example: VFM-0608-06 – no minimum order quantity.
V400 iglidur material S Cylindrical M Metric 06 Inner Ø d1 08 Outer Ø d2 06 Total length b1 V400 iglidur material F With flange M Metric 06 Inner Ø d1 08 Outer Ø d2 06 Total length b1
®
®

d1 d1 d2 b1 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
6.0 +0.010 +0.058 8.0 6.0 VSM-0608-06 6.0 +0.010 +0.058 8.0 12.0 6.0 1.00 VFM-0608-06
8.0 +0.013 +0.071 10.0 10.0 VSM-0810-10 8.0 +0.013 +0.071 10.0 15.0 10.0 1.00 VFM-0810-10
10.0 12.0 10.0 VSM-1012-10 10.0 12.0 18.0 10.0 1.00 VFM-1012-10
12.0 +0.016 +0.086 14.0 12.0 VSM-1214-12 12.0 +0.016 +0.086 14.0 20.0 12.0 1.00 VFM-1214-12
16.0 18.0 15.0 VSM-1618-15 16.0 18.0 24.0 17.0 1.00 VFM-1618-17
20.0 +0.020 +0.104 23.0 20.0 VSM-2023-20 18.0 +0.020 +0.104 20.0 26.0 20.0 1.00 VFM-1820-20
20.0 23.0 30.0 21.5 1.50 VFM-2023-21
3) After press-fit. Testing methods, page 61
3) After press-fit. Testing methods, page 61

Available from stock Ordering note Available from stock Ordering note
Detailed information about delivery time online. Our prices are scaled according to order Detailed information about delivery time online. Our prices are scaled according to order
www.igus-asean.com/24 quantities, current prices can be found online. www.igus-asean.com/24 quantities, current prices can be found online.
Order online Discount scaling Order online Discount scaling
including delivery times, prices, online tools 1-9 50-99 500-999 including delivery times, prices, online tools 1-9 50-99 500-999
www.igus-asean.com/V400 www.igus-asean.com/V400
10-24 100-199 1,000-2,499 10-24 100-199 1,000-2,499
25-49 200-499 2,500-4,999 25-49 200-499 2,500-4,999
No minimum order value. No minimum order value.
No low-quantity surcharges. No low-quantity surcharges.
Free shipping within Germany for orders Free shipping within Germany for orders
above €150. ASEAN 09/2023 ASEAN 09/2023 above €150.
324 3D-CAD, finder and service life calculation ... www.igus-asean.com/V400 Lubrication-free made easy ... from stock ... no minimum order quantity 325
