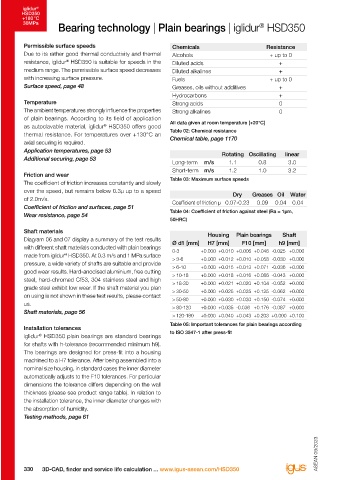

Page 332 - IGUS Bearing

®
®
iglidur iglidur
HSD350 HSD350
+180 °C +180 °C
30MPa 30MPa
Bearing technology | Plain bearings | iglidur HSD350 Technical data
®
Permissible surface speeds Chemicals Resistance 100.0 12
Due to its rather good thermal conductivity and thermal Alcohols + up to 0 10.0 10
resistance, iglidur HSD350 is suitable for speeds in the Diluted acids + 8
®
medium range. The permissible surface speed decreases Diluted alkalines + 1.0 6
with increasing surface pressure. Fuels + up to 0 4 H.a. aluminium Free cutting steel Cf53, hard chromed HR carbon steel 304 stainless steel High grade steel
Surface speed, page 48 Greases, oils without additives + Surface pressure [MPa] 0.1 2 Cf53 steel
Hydrocarbons + Wear [µm/km]
Temperature Strong acids 0 0.01 0.001 0.01 0.1 1.0 10.0 0
The ambient temperatures strongly influence the properties Strong alkalines 0
of plain bearings. According to its field of application Surface speed [m/s]
®
as autoclavable material, iglidur HSD350 offers good All data given at room temperature [+20°C] Diagram 01: Permissible pv values for iglidur HSD350 with a Diagram 05: Wear, rotating with different shaft materials,
®
thermal resistance. For temperatures over +130°C an Table 02: Chemical resistance wall thickness of 1mm dry operation against a steel shaft at pressure, p = 1MPa, v = 0.3m/s
Chemical table, page 1170
axial securing is required. +20°C, mounted in a steel housing
Application temperatures, page 53 Rotating Oscillating linear
Additional securing, page 53
Long-term m/s 1.1 0.8 3.0 35 500 rotating
Short-term m/s 1.2 1.0 3.2 30 400 oscillating
Friction and wear 25
The coefficient of friction increases constantly and slowly Table 03: Maximum surface speeds 20 300
over the speed, but remains below 0.3µ up to a speed Dry Greases Oil Water 15 200
of 2.0m/s. Coefficient of friction μ 0.07-0.23 0.09 0.04 0.04 10
Coefficient of friction and surfaces, page 51 Table 04: Coefficient of friction against steel (Ra = 1μm, 5 Wear [µm/km] 100
Wear resistance, page 54 Load [MPa] 0 0
50HRC) 20 50 80 120 150 0 20 40 60 80
Shaft materials Housing Plain bearings Shaft Temperature [°C]
Diagram 06 and 07 display a summary of the test results Ø d1 [mm] H7 [mm] F10 [mm] h9 [mm] Diagram 02: Maximum recommended surface pressure as a Diagram 06: Wear for oscillating and rotating applications
with different shaft materials conducted with plain bearings 0-3 +0.000 +0.010 +0.006 +0.046 -0.025 +0.000 function of temperature (30MPa at +20°C) with shaft material Cf53 hardened and ground steel, as a
made from iglidur HSD350. At 0.3 m/s and 1 MPa surface > 3-6 +0.000 +0.012 +0.010 +0.058 -0.030 +0.000 function of the load
®
pressure, a wide variety of shafts are suitable and provide > 6-10 +0.000 +0.015 +0.013 +0.071 -0.036 +0.000 3.5
good wear results. Hard-anodised aluminium, free cutting > 10-18 +0.000 +0.018 +0.016 +0.086 -0.043 +0.000 3.0
steel, hard-chromed Cf53, 304 stainless steel and high > 18-30 +0.000 +0.021 +0.020 +0.104 -0.052 +0.000 2.5 +23°C
grade steel exhibit low wear. If the shaft material you plan > 30-50 +0.000 +0.025 +0.025 +0.125 -0.062 +0.000 2.0 +60°C
on using is not shown in these test results, please contact > 50-80 +0.000 +0.030 +0.030 +0.150 -0.074 +0.000 1.5
us. > 80-120 +0.000 +0.035 -0.036 +0.176 -0.087 +0.000 1.0
Shaft materials, page 56 Deformation [%] 0.5
> 120-180 +0.000 +0.040 +0.043 +0.203 +0.000 +0.100
Table 05: Important tolerances for plain bearings according 0.0
Installation tolerances 0 10 20 30
iglidur HSD350 plain bearings are standard bearings to ISO 3547-1 after press-fit Load [MPa]
®
for shafts with h-tolerance (recommended minimum h9). Diagram 03: Deformation under pressure and temperature
The bearings are designed for press-fit into a housing
machined to a H7 tolerance. After being assembled into a
nominal size housing, in standard cases the inner diameter 0.70
automatically adjusts to the F10 tolerances. For particular 0.60
dimensions the tolerance differs depending on the wall 0.50
thickness (please see product range table). In relation to 0.40
the installation tolerance, the inner diameter changes with Coefficient of friction [µ] 0.30
the absorption of humidity. 0.20
Testing methods, page 61 0.10
0.00
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Surface speed [m/s]
ASEAN 09/2023 ASEAN 09/2023 surface speed, p = 1MPa
Diagram 04: Coefficient of friction as a function of the

330 3D-CAD, finder and service life calculation ... www.igus-asean.com/HSD350 Lubrication-free made easy ... from stock ... no minimum order quantity 331
