Bearing technology | Plain bearings | iglidur                                 ®                                           High media resistance




          Plain bearing materials with good media resistance                                                                                                                             Temperature [°C]  123)  +200 –               +


                                                                                                                                                        ®

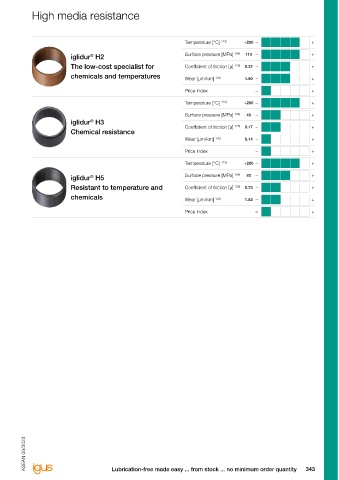

          Almost at the same level as the previous group in terms of temperatures, the "iglidur  H family" is characterised by a                 iglidur  H2                             Surface pressure [MPa]  124)  110 –          +
                                                                                  ®
          high media resistance and a wide range of applications in wet areas.                                                                   The low-cost specialist for             Coefficient of friction [µ]  125)  0.32 –    +
               ®
                                                                ®
          iglidur  H370 is the specialist for underwater applications, iglidur  H2 is the media-resistant, low-cost bearing solution             chemicals and temperatures                         125)
          for high-volume production with low running performance and iglidur  H1, the endurance runner of this group.                                                                   Wear [µm/km]         4.80 –                  +
                                                                    ®
                                                                                                                                                                                         Price index               –                  +
               Online product finder                               Online service life calculation                                                                                                    123)
               www.igus-asean.com/iglidur-finder                   www.igus-asean.com/iglidur-expert                                                                                     Temperature [°C]     +200 –                  +
                                                                                                                                                                                         Surface pressure [MPa]  124)  40 –           +
                                                                                                                                                 iglidur  H3
                                                                                                                                                        ®
                                                                                                                                                                                         Coefficient of friction [µ]  125)  0.17 –    +
                                                                                                                                                 Chemical resistance
                                                                                                                                                                                         Wear [µm/km]  125)   0.14 –                  +
                                                                                                                                                                                         Price index               –                  +

                                                                                                                                                                                         Temperature [°C]  123)  +200 –               +

                                                                                                                                                 iglidur  H5                             Surface pressure [MPa]  124)  80 –           +
                                                                                                                                                        ®
                                                                                                                                                 Resistant to temperature and            Coefficient of friction [µ]  125)  0.23 –    +
                                                                                                                                                 chemicals                               Wear [µm/km]  125)   1.82 –                  +

                                                                Temperature [°C]  123)  +200 –              +
                                                                                                                                                                                         Price index               –                  +
                       iglidur  H1                              Surface pressure [MPa]  124)  80 –          +
                              ®
                       Endurance runner with high media  Coefficient of friction [µ]  125)  0.17 –          +
                       resistance                               Wear [µm/km]  125)   0.29 –                 +

                                                                Price index              –                  +

                                                                Temperature [°C]  123)  +200 –              +

                                                                Surface pressure [MPa]  124)  75 –          +
                       iglidur  H370
                              ®
                                                                Coefficient of friction [µ]  125)  0.17 –   +
                       Long service life under water
                                                                Wear [µm/km]  125)   1.20 –                 +

                                                                Price index              –                  +
                                                                Temperature [°C]  123)  +200 –              +

                       iglidur  H                               Surface pressure [MPa]  124)  90 –          +
                              ®
                       The classic with high resistance         Coefficient of friction [µ]  125)  0.17 –   +
                       to media and temperature                 Wear [µm/km]  125)   2.10 –                 +


                                                                Price index              –                  +
                                                                Temperature [°C]  123)  +250 –              +


                       iglidur  C500                            Surface pressure [MPa]  124)  80 –          +
                              ®
                       High temperature endurance               Coefficient of friction [µ]  125)  0.19 –   +
                       runner                                   Wear [µm/km]  125)   0.48 –                 +

                                                                Price index              –                  +

          123)  Upper long-term application temperature   124)  Max. recommended surface pressure at +20°C   125)  Best pairing for p = 1 MPa,
          v = 0.3m/s, rotating                                                                                   ASEAN 09/2023   ASEAN 09/2023
