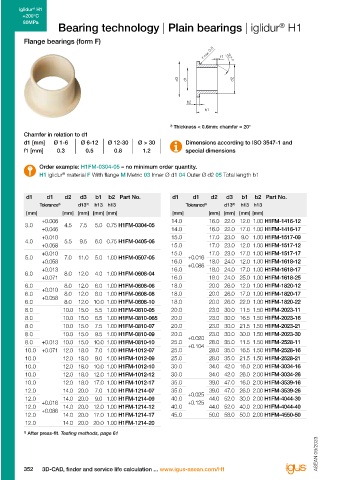

Page 354 - IGUS Bearing

iglidur H1
®
+200°C
80MPa
Bearing technology | Plain bearings | iglidur H1
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: H1FM-0304-05 – no minimum order quantity.
H1 iglidur material F With flange M Metric 03 Inner Ø d1 04 Outer Ø d2 05 Total length b1 Long service life under water
®
High media resistance
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] iglidur H370
®
+0.006 14.0 16.0 22.0 12.0 1.00 H1FM-1416-12
3.0 4.5 7.5 5.0 0.75 H1FM-0304-05
+0.046 14.0 16.0 22.0 17.0 1.00 H1FM-1416-17
+0.010 15.0 17.0 23.0 9.0 1.00 H1FM-1517-09
4.0 5.5 9.5 6.0 0.75 H1FM-0405-06
+0.058 15.0 17.0 23.0 12.0 1.00 H1FM-1517-12
+0.010 15.0 17.0 23.0 17.0 1.00 H1FM-1517-17 When to use it?
5.0 7.0 11.0 5.0 1.00 H1FM-0507-05 +0.016 For underwater applications
+0.058 16.0 +0.086 18.0 24.0 12.0 1.00 H1FM-1618-12 ●
+0.013 16.0 18.0 24.0 17.0 1.00 H1FM-1618-17 ● When high temperature resistance is required
6.0 8.0 12.0 4.0 1.00 H1FM-0608-04
+0.071 16.0 18.0 24.0 25.0 1.00 H1FM-1618-25 ● When high mechanical loading and wear resistance is required
6.0 8.0 12.0 6.0 1.00 H1FM-0608-06 18.0 20.0 26.0 12.0 1.00 H1FM-1820-12 ● When good chemical resistance is required
6.0 +0.010 8.0 12.0 8.0 1.00 H1FM-0608-08 18.0 20.0 26.0 17.0 1.00 H1FM-1820-17
+0.058
6.0 8.0 12.0 10.0 1.00 H1FM-0608-10 18.0 20.0 26.0 22.0 1.00 H1FM-1820-22
8.0 10.0 15.0 5.5 1.00 H1FM-0810-05 20.0 23.0 30.0 11.5 1.50 H1FM-2023-11
8.0 10.0 15.0 6.5 1.00 H1FM-0810-065 20.0 23.0 30.0 16.5 1.50 H1FM-2023-16 When not to use it?
8.0 10.0 15.0 7.5 1.00 H1FM-0810-07 20.0 23.0 30.0 21.5 1.50 H1FM-2023-21 ● When mechanical reaming of the bore is necessary
®
8.0 10.0 15.0 9.5 1.00 H1FM-0810-09 20.0 +0.020 23.0 30.0 30.0 1.50 H1FM-2023-30 iglidur M250
8.0 +0.013 10.0 15.0 10.0 1.00 H1FM-0810-10 25.0 +0.104 28.0 35.0 11.5 1.50 H1FM-2528-11 ● When high wear resistance in temperatures is required
®
10.0 +0.071 12.0 18.0 7.0 1.00 H1FM-1012-07 25.0 28.0 35.0 16.5 1.50 H1FM-2528-16 iglidur H1
10.0 12.0 18.0 9.0 1.00 H1FM-1012-09 25.0 28.0 35.0 21.5 1.50 H1FM-2528-21 ● For use in dirty surroundings
®
10.0 12.0 18.0 10.0 1.00 H1FM-1012-10 30.0 34.0 42.0 16.0 2.00 H1FM-3034-16 iglidur Z
10.0 12.0 18.0 12.0 1.00 H1FM-1012-12 30.0 34.0 42.0 26.0 2.00 H1FM-3034-26 ● When a cost-effective, large-volume solution is required
®
10.0 12.0 18.0 17.0 1.00 H1FM-1012-17 35.0 39.0 47.0 16.0 2.00 H1FM-3539-16 iglidur H2
12.0 14.0 20.0 7.0 1.00 H1FM-1214-07 35.0 +0.025 39.0 47.0 26.0 2.00 H1FM-3539-26
12.0 +0.016 14.0 20.0 9.0 1.00 H1FM-1214-09 40.0 +0.125 44.0 52.0 30.0 2.00 H1FM-4044-30
12.0 +0.086 14.0 20.0 12.0 1.00 H1FM-1214-12 40.0 44.0 52.0 40.0 2.00 H1FM-4044-40
12.0 14.0 20.0 17.0 1.00 H1FM-1214-17 45.0 50.0 58.0 50.0 2.00 H1FM-4550-50
12.0 14.0 20.0 20.0 1.00 H1FM-1214-20
3) After press-fit. Testing methods, page 61
ASEAN 09/2023 ASEAN 09/2023

352 3D-CAD, finder and service life calculation ... www.igus-asean.com/H1
