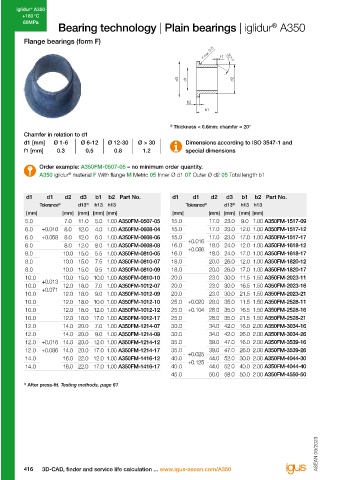

iglidur A350
®
+180 °C
60MPa
Bearing technology | Plain bearings | iglidur A350
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: A350FM-0507-05 – no minimum order quantity.
A350 iglidur material F With flange M Metric 05 Inner Ø d1 07 Outer Ø d2 05 Total length b1 The media and temperature specialist
®
in the food sector
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Compliant with Regulation (EU)
5.0 7.0 11.0 5.0 1.00 A350FM-0507-05 15.0 17.0 23.0 9.0 1.00 A350FM-1517-09
6.0 +0.010 8.0 12.0 4.0 1.00 A350FM-0608-04 15.0 17.0 23.0 12.0 1.00 A350FM-1517-12
6.0 +0.058 8.0 12.0 6.0 1.00 A350FM-0608-06 15.0 +0.016 17.0 23.0 17.0 1.00 A350FM-1517-17 No. 10/2011 and FDA guidelines
6.0 8.0 12.0 8.0 1.00 A350FM-0608-08 16.0 +0.086 18.0 24.0 12.0 1.00 A350FM-1618-12
8.0 10.0 15.0 5.5 1.00 A350FM-0810-05 16.0 18.0 24.0 17.0 1.00 A350FM-1618-17 iglidur A500
®
8.0 10.0 15.0 7.5 1.00 A350FM-0810-07 18.0 20.0 26.0 12.0 1.00 A350FM-1820-12
8.0 10.0 15.0 9.5 1.00 A350FM-0810-09 18.0 20.0 26.0 17.0 1.00 A350FM-1820-17
10.0 +0.013 10.0 15.0 10.0 1.00 A350FM-0810-10 20.0 23.0 30.0 11.5 1.50 A350FM-2023-11
10.0 12.0 18.0 7.0 1.00 A350FM-1012-07 20.0 23.0 30.0 16.5 1.50 A350FM-2023-16
10.0 +0.071 12.0 18.0 9.0 1.00 A350FM-1012-09 20.0 23.0 30.0 21.5 1.50 A350FM-2023-21 When to use it?
10.0 12.0 18.0 10.0 1.00 A350FM-1012-10 25.0 +0.020 28.0 35.0 11.5 1.50 A350FM-2528-11 ● When FDA compliance is required
10.0 12.0 18.0 12.0 1.00 A350FM-1012-12 25.0 +0.104 28.0 35.0 16.5 1.50 A350FM-2528-16 ● When a high chemical resistance is required
10.0 12.0 18.0 17.0 1.00 A350FM-1012-17 25.0 28.0 35.0 21.5 1.50 A350FM-2528-21 ● Abrasion-resistant
12.0 14.0 20.0 7.0 1.00 A350FM-1214-07 30.0 34.0 42.0 16.0 2.00 A350FM-3034-16 ● Temperature-resistant from -100°C to +250°C
12.0 14.0 20.0 9.0 1.00 A350FM-1214-09 30.0 34.0 42.0 26.0 2.00 A350FM-3034-26
12.0 +0.016 14.0 20.0 12.0 1.00 A350FM-1214-12 35.0 39.0 47.0 16.0 2.00 A350FM-3539-16
12.0 +0.086 14.0 20.0 17.0 1.00 A350FM-1214-17 35.0 +0.025 39.0 47.0 26.0 2.00 A350FM-3539-26
14.0 16.0 22.0 12.0 1.00 A350FM-1416-12 40.0 +0.125 44.0 52.0 30.0 2.00 A350FM-4044-30 When not to use it?
14.0 16.0 22.0 17.0 1.00 A350FM-1416-17 40.0 44.0 52.0 40.0 2.00 A350FM-4044-40 ● When the highest wear resistance is required
®
®
45.0 50.0 58.0 50.0 2.00 A350FM-4550-50 iglidur X6, iglidur Z
● When no resistance to temperature or chemicals is required
3) After press-fit. Testing methods, page 61
iglidur A180, iglidur A200
®
®
● When a cost-effective universal plain bearing is required
®
iglidur G, iglidur P
®

ASEAN 09/2023 ASEAN 09/2023

416 3D-CAD, finder and service life calculation ... www.igus-asean.com/A350
