Bearing technology | Plain bearings | iglidur ® Harsh environments
Plain bearing materials for harsh environments Temperature [°C] 123) +100 – +
Surface pressure [MPa] 124) 50 – +

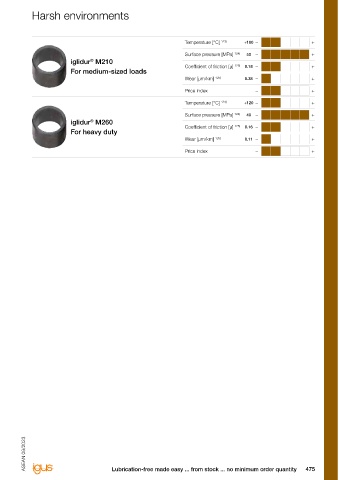

The iglidur plain bearings for high load combine high wear resistance with the ability to withstand high (static) loads, iglidur M210
®
®
shocks and edge loads. Coefficient of friction [µ] 125) 0.18 – +
Within these properties they all have their own special strengths. Harsh environments mean radial surface pressure For medium-sized loads 125)
starting from 30MPa up to more than 100MPa (100MPa means 1,000kg on a 10 x 10mm plain bearing) Wear [µm/km] 0.38 – +
Price index – +
Temperature [°C] 123) +120 – +
Online product finder Online service life calculation
www.igus-asean.com/iglidur-finder www.igus-asean.com/iglidur-expert Surface pressure [MPa] 124) 40 – +
iglidur M260
®
Coefficient of friction [µ] 125) 0.16 – +
For heavy duty
Wear [µm/km] 125) 0.11 – +
Price index – +
Temperature [°C] 123) +130 – +
Surface pressure [MPa] 124) 120 – +
iglidur Q2
®
Coefficient of friction [µ] 125) 0.17 – +
The durable heavy-duty bearing
Wear [µm/km] 125) 1.50 – +
Price index – +
Temperature [°C] 123) +100 – +
Surface pressure [MPa] 124) 135 – +
iglidur Q3E
®
Coefficient of friction [µ] 125) 0.17 – +
Cost-effective heavy-duty bearing
Wear [µm/km] 125) 1.50 – +
Price index – +
Temperature [°C] 123) +135 – +
Surface pressure [MPa] 124) 100 – +
iglidur Q 125)
®
The peak of stability Coefficient of friction [µ] 0.19 – +
Wear [µm/km] 125) 1.90 – +
Price index - +
Temperature [°C] 123) +140 – +
Surface pressure [MPa] 124) 55 – +
iglidur Q290 125)
®
Heavy-duty on soft shafts Coefficient of friction [µ] 0.12 – +
Wear [µm/km] 125) 0.48 – +
Price index – +
123) Upper long-term application temperature 124) Max. recommended surface pressure at +20°C 125) Best pairing for p = 1 MPa,
v = 0.3m/s, rotating ASEAN 09/2023 ASEAN 09/2023
