iglidur Q3E
®
+100°C
135MPa
Bearing technology | Plain bearings | iglidur Q3E
®
Sleeve bearings (form S)

f1 30°

d1 0.5 d2

30°
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 12-30 Ø > 30
f1 [mm] 0.8 1.2

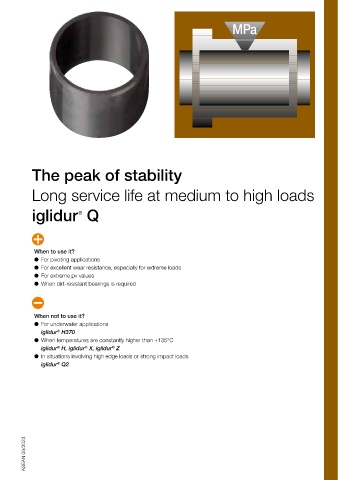

Order example: Q3ESM-2025-20 – no minimum order quantity. The peak of stability
Q3E iglidur material S Cylindrical M Metric 20 Inner Ø d1 25 Outer Ø d2 20 Total length b1
®
Long service life at medium to high loads
d1 d1 d2 b1 Part No.
Tolerance 3) h13
®
[mm] [mm] [mm] iglidur Q
20.0 +0.040 +0.164 25.0 20.0 Q3ESM-2025-20
25.0 30.0 30.0 Q3ESM-2530-30
30.0 35.0 30.0 Q3ESM-3035-30
35.0 +0.050 +0.190 40.0 40.0 Q3ESM-3540-40 When to use it?
40.0 45.0 40.0 Q3ESM-4045-40 ● For pivoting applications
45.0 50.0 50.0 Q3ESM-4550-50 ● For excellent wear resistance, especially for extreme loads
50.0 +0.060 +0.220 55.0 50.0 Q3ESM-5055-50 ● For extreme pv values
60.0 65.0 60.0 Q3ESM-6065-60 ● When dirt-resistant bearings is required
3) After press-fit. Testing methods, page 61

When not to use it?
● For underwater applications
iglidur H370
®
● When temperatures are constantly higher than +135°C
®
iglidur H, iglidur X, iglidur Z
®
®
● In situations involving high edge loads or strong impact loads
Available from stock Ordering note iglidur Q2
®
Detailed information about delivery time online. Our prices are scaled according to order
www.igus-asean.com/24 quantities, current prices can be found online.
Order online Discount scaling
including delivery times, prices, online tools 1-9 50-99 500-999
www.igus-asean.com/Q3E
10-24 100-199 1,000-2,499
25-49 200-499 2,500-4,999
No minimum order value.
No low-quantity surcharges.
Free shipping within Germany for orders
above €150. ASEAN 09/2023 ASEAN 09/2023
490 3D-CAD, finder and service life calculation ... www.igus-asean.com/Q3E
