igutex TX1
®
+120°C
200MPa
Bearing technology | Plain bearings | igutex TX1
®
Sleeve bearings (form S)

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 12 – 30 Ø >30 Dimensions according to ISO 2795 and special
f1 [mm] 0.8 1.2 dimensions

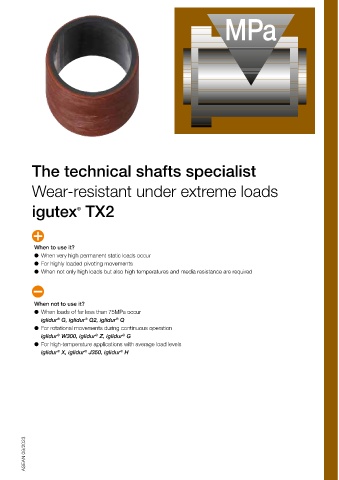

Order example: TX1SM-2025-20 – no minimum order quantity. The technical shafts specialist
TX1 igutex material S Cylindrical M Metric 20 Inner Ø d1 25 Outer Ø d2 20 Total length b1
®
Wear-resistant under extreme loads

d1 d1 d2 b1 Part No.
Tolerance 38) h13 igutex TX2
®
[mm] [mm] [mm]
20.0 25.0 20.0 TX1SM-2025-20
20.0 25.0 30.0 TX1SM-2025-30
20.0 25.0 40.0 TX1SM-2025-40
20.0 30.0 30.0 TX1SM-2030-30 When to use it?
25.0 30.0 20.0 TX1SM-2530-20 ● When very high permanent static loads occur
25.0 +0.020 +0.150 30.0 30.0 TX1SM-2530-30 ● For highly loaded pivoting movements
25.0 30.0 40.0 TX1SM-2530-40 ● When not only high loads but also high temperatures and media resistance are required
30.0 35.0 30.0 TX1SM-3035-30
30.0 35.0 40.0 TX1SM-3035-40
30.0 40.0 40.0 TX1SM-3040-40
40.0 45.0 40.0 TX1SM-4045-40 When not to use it?
40.0 50.0 50.0 TX1SM-4050-50 ● When loads of far less than 75MPa occur
®
®
®
50.0 55.0 50.0 TX1SM-5055-50 iglidur G, iglidur Q2, iglidur Q
50.0 +0.025 +0.175 60.0 60.0 TX1SM-5060-60 ● For rotational movements during continuous operation
®
®
®
60.0 65.0 60.0 TX1SM-6065-60 iglidur W300, iglidur Z, iglidur G
60.0 70.0 80.0 TX1SM-6070-80 ● For high-temperature applications with average load levels
®
®
®
70.0 75.0 60.0 TX1SM-7075-60 iglidur X, iglidur J350, iglidur H
70.0 80.0 100.0 TX1SM-7080-100
80.0 +0.050 +0.200 85.0 100.0 TX1SM-8085-100
80.0 90.0 100.0 TX1SM-8090-100
38) After press-fit of the bearing in a housing with nominal dimension

ASEAN 09/2023 ASEAN 09/2023

526 3D-CAD, finder and service life calculation ... www.igus-asean.com/TX1
