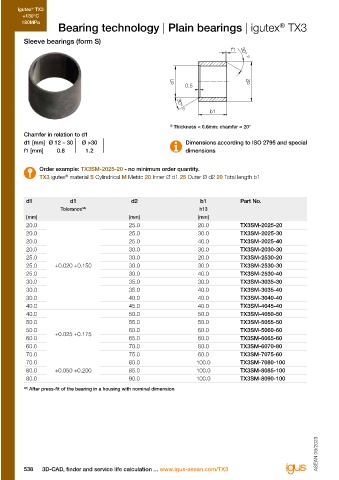

Page 540 - IGUS Bearing

igutex TX3
®
+130°C
180MPa
Bearing technology | Plain bearings | igutex TX3
®
Sleeve bearings (form S)
f1 30°

d1 d2
0.5

30°
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 12 – 30 Ø >30 Dimensions according to ISO 2795 and special
f1 [mm] 0.8 1.2 dimensions

Order example: TX3SM-2025-20 - no minimum order quantity.
TX3 igutex material S Cylindrical M Metric 20 Inner Ø d1 25 Outer Ø d2 20 Total length b1
®

d1 d1 d2 b1 Part No.
Tolerance 38) h13
[mm] [mm] [mm]
20.0 25.0 20.0 TX3SM-2025-20
20.0 25.0 30.0 TX3SM-2025-30
20.0 25.0 40.0 TX3SM-2025-40
20.0 30.0 30.0 TX3SM-2030-30
25.0 30.0 20.0 TX3SM-2530-20
25.0 +0.020 +0.150 30.0 30.0 TX3SM-2530-30
25.0 30.0 40.0 TX3SM-2530-40
30.0 35.0 30.0 TX3SM-3035-30
30.0 35.0 40.0 TX3SM-3035-40
30.0 40.0 40.0 TX3SM-3040-40
40.0 45.0 40.0 TX3SM-4045-40
40.0 50.0 50.0 TX3SM-4050-50
50.0 55.0 50.0 TX3SM-5055-50
50.0 +0.025 +0.175 60.0 60.0 TX3SM-5060-60
60.0 65.0 60.0 TX3SM-6065-60
60.0 70.0 80.0 TX3SM-6070-80
70.0 75.0 60.0 TX3SM-7075-60
70.0 80.0 100.0 TX3SM-7080-100
80.0 +0.050 +0.200 85.0 100.0 TX3SM-8085-100
80.0 90.0 100.0 TX3SM-8090-100

38) After press-fit of the bearing in a housing with nominal dimension

ASEAN 09/2023 ASEAN 09/2023

538 3D-CAD, finder and service life calculation ... www.igus-asean.com/TX3
