P. 569

iglidur  H4                                                                                                                                                                                                              iglidur  H4
             ®
                                                                                                                                                                                                                                     ®
         +200°C                                                                                                                                                                                                                   +200°C
          65MPa                                                                                                                                                                                                                   65MPa
                      Bearing technology | Plain bearings | iglidur  H4                                                             Bearing technology | Plain bearings | iglidur  H4
                                                                                                    ®
                                                                                                                                                                                                                 ®

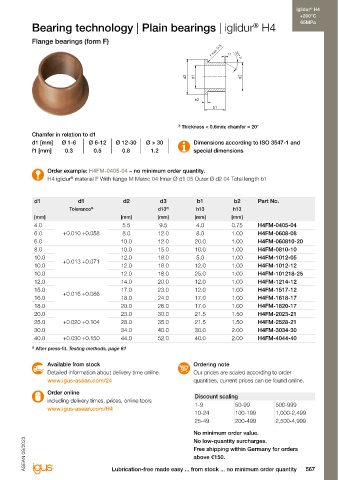

          Sleeve bearings (form S)                                                                                                  Flange bearings (form F)
                                                                                                                                                                                                   r max. 0.5
                                                                              f1  30°                                                                                                                    f1  30°



                                                                d1  0.5           d2                                                                                                      d3  d1             d2


                                                                 30°
                                                                         b1                                                                                                                  b2
                                                                                                                                                                                                   b1


                                                             2)  Thickness < 0.6mm: chamfer = 20°                                                                                      2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 Chamfer in relation to d1
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and                           d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30          Dimensions according to ISO 3547-1 and
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions                                               f1 [mm]    0.3       0.5       0.8       1.2            special dimensions



               Order example: H4SM-0405-04 – no minimum order quantity.                                                                  Order example: H4FM-0405-04 – no minimum order quantity.
               H4 iglidur  material S Cylindrical M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1                                H4 iglidur  material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
                                                                                                                                                 ®
                       ®

           d1             d1                   d2                       b1            Part No.                                      d1              d1              d2           d3           b1           b2      Part No.
                       Tolerance 3)                                    h13                                                                       Tolerance 3)                   d13 3)       h13          h13
           [mm]                                [mm]                    [mm]                                                         [mm]                           [mm]         [mm]         [mm]         [mm]
           4.0       +0.010 +0.058             5.5                     4.0            H4SM-0405-04                                  4.0                            5.5          9.5          4.0          0.75     H4FM-0405-04
           6.0                                 8.0                     8.0            H4SM-0608-08                                  6.0        +0.010 +0.058       8.0          12.0         8.0          1.00     H4FM-0608-08
           8.0       +0.013 +0.071             10.0                    10.0           H4SM-0810-10                                  6.0                            10.0         12.0         20.0         1.00     H4FM-060810-20
           8.0                                 10.0                    20.0           H4SM-0810-20                                  8.0                            10.0         15.0         10.0         1.00     H4FM-0810-10
           16.0      +0.016 +0.086             18.0                    20.0           H4SM-1618-20                                  10.0       +0.013 +0.071       12.0         18.0         5.0          1.00     H4FM-1012-05
           18.0                                20.0                    15.0           H4SM-1820-15                                  10.0                           12.0         18.0         12.0         1.00     H4FM-1012-12
           20.0      +0.020 +0.104             22.0                    15.0           H4SM-2022-15                                  10.0                           12.0         18.0         25.0         1.00     H4FM-101218-25
           39.0      +0.025 +0.125             43.0                    40.0           H4SM-3943-40                                  12.0                           14.0         20.0         12.0         1.00     H4FM-1214-12
          3)  After press-fit. Testing methods, page 61                                                                             15.0       +0.016 +0.086       17.0         23.0         12.0         1.00     H4FM-1517-12
                                                                                                                                    16.0                           18.0         24.0         17.0         1.00     H4FM-1618-17
                                                                                                                                    18.0                           20.0         26.0         17.0         1.00     H4FM-1820-17
                                                                                                                                    20.0                           23.0         30.0         21.5         1.50     H4FM-2023-21
                                                                                                                                    25.0       +0.020 +0.104       28.0         35.0         21.5         1.50     H4FM-2528-21
                                                                                                                                    30.0                           34.0         40.0         30.0         2.00     H4FM-3034-30
                                                                                                                                    40.0       +0.030 +0.150       44.0         52.0         40.0         2.00     H4FM-4044-40

                                                                                                                                    3)  After press-fit. Testing methods, page 61

               Available from stock                                Ordering note                                                         Available from stock                               Ordering note
               Detailed information about delivery time online.    Our prices are scaled according to order                              Detailed information about delivery time online.   Our prices are scaled according to order
               www.igus-asean.com/24                               quantities, current prices can be found online.                       www.igus-asean.com/24                              quantities, current prices can be found online.
               Order online                                        Discount scaling                                                      Order online                                        Discount scaling
               including delivery times, prices, online tools      1-9           50-99         500-999                                   including delivery times, prices, online tools      1-9           50-99         500-999
               www.igus-asean.com/H4                                                                                                     www.igus-asean.com/H4
                                                                   10-24         100-199       1,000-2,499                                                                                   10-24         100-199       1,000-2,499
                                                                   25-49         200-499       2,500-4,999                                                                                   25-49         200-499       2,500-4,999
                                                                   No minimum order value.                                                                                                  No minimum order value.
                                                                   No low-quantity surcharges.                                                                                              No low-quantity surcharges.
                                                                   Free shipping within Germany for orders                                                                                  Free shipping within Germany for orders
                                                                   above €150.                                   ASEAN 09/2023   ASEAN 09/2023                                              above €150.
          566   3D-CAD, finder and service life calculation ... www.igus-asean.com/H4                                                                           Lubrication-free made easy ... from stock ... no minimum order quantity  567
