iglidur  B                                                                                                                                                                                                              iglidur  B
             ®
                                                                                                                                                                                                                                      ®
         +100°C                                                                                                                                                                                                                   +100°C
          40MPa                                                                                                                                                                                                                   40MPa

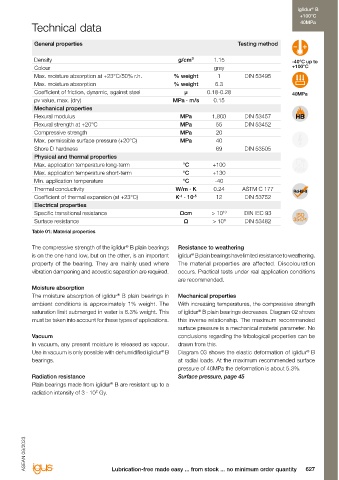

                      Bearing technology | Plain bearings | iglidur  B                                                              Technical data
                                                                                                    ®
                                                                                                                                      General properties                                                    Testing method

                                                                                                                                    Density                                            g/cm³        1.15                       -40°C up to
          Ø                                                                                                                         Colour                                                          grey                       +100°C
             –
                                                                                                                                    Max. moisture absorption at +23°C/50% r.h.       % weight        1        DIN 53495
                                                                                                                                    Max. moisture absorption                         % weight       6.3
                                                                                                                                    Coefficient of friction, dynamic, against steel      µ       0.18-0.28                     40MPa
                                                                                                                                    pv value, max. (dry)                             MPa · m/s      0.15
          Also available
          as:                                                                                                                       Mechanical properties
                      The variable one                                                                                              Flexural modulus                                    MPa        1,800      DIN 53457
                                                                                                                                    Flexural strength at +20°C
                                                                                                                                                                                                    55
                                                                                                                                                                                                              DIN 53452
                                                                                                                                                                                        MPa
                      For simple bearing applications                                                                               Compressive strength                                MPa         20
          Bar stock,                                                                                                                Max. permissible surface pressure (+20°C)           MPa         40
          round bar
          Page 743                                                                                                                  Shore D hardness                                                69        DIN 53505
                      Vibration dampening is the predominant feature of the iglidur  B material, which are also well-suited for
                                                                         ®
                      edge loads at low pressure.                                                                                   Physical and thermal properties
                      ● 	Elimination of noise                                                                                       Max. application temperature long-term               °C        +100                         FOOD
                      ● 	High flexibility                                                                                           Max. application temperature short-term              °C        +130
                      ● 	Sealing function possible                                                                                  Min. application temperature                         °C         -40
          Bar stock,   ● 	Lubrication-free                                                                                          Thermal conductivity                              W/m · K       0.24      ASTM C 177
          plate                                                                                                                                                                        -1   -5
          Page 773    ● 	Maintenance-free                                                                                           Coefficient of thermal expansion (at +23°C)       K  · 10       12        DIN 53752
                                                                                                                                    Electrical properties
                                                                                                                                    Specific transitional resistance                    Ωcm        > 10 10    DIN IEC 93
                                                                                                                                    Surface resistance                                   Ω         > 10 9     DIN 53482
                                                                                                                                    Table 01: Material properties
          tribo-tape liner
          Page 781                                                                                                                  The compressive strength of the iglidur  B plain bearings   Resistance to weathering
                                                                                                                                                                     ®
                                                                                                                                    is on the one hand low, but on the other, is an important   iglidur  B plain bearings have limited resistance to weathering.
                                                                                                                                                                                            ®
                                                                                                                                    property of the bearing. They are mainly used where   The material properties are affected. Discolouration
                                                                                                                                    vibration dampening and acoustic separation are required.  occurs. Practical tests under real application conditions
                                                                                                                                                                                       are recommended.
                                                                                                                                    Moisture absorption
          Guide rings
                                                                                                                                                                  ®
          Page 641                                                                                                                  The moisture absorption of iglidur  B plain bearings in   Mechanical properties
                                                                                                                                    ambient conditions is approximately 1% weight. The   With increasing temperatures, the compressive strength
                       Descriptive technical specifications                                                                         saturation limit submerged in water is 6.3% weight. This   of iglidur  B plain bearings decreases. Diagram 02 shows
                                                                                                                                                                                              ®
                       Wear resistance at +23°C                     –                       +                                       must be taken into account for these types of applications.  this inverse relationship. The maximum recommended
                                                                                                                                                                                       surface pressure is a mechanical material parameter. No
                       Wear resistance at +90°C                     –                       +
                                                                                                                                    Vacuum                                             conclusions regarding the tribological properties can be
          Two hole     Wear resistance at +150°C                    –                       +                                       In vacuum, any present moisture is released as vapour.   drawn from this.
          flange
          bearings                                                                                                                  Use in vacuum is only possible with dehumidified iglidur  B    Diagram 03 shows the elastic deformation of iglidur  B
                                                                                                                                                                                 ®
                                                                                                                                                                                                                                    ®
          Page 667     Slide property                               –                       +
                                                                                                                                    bearings.                                          at radial loads. At the maximum recommended surface
                       Wear resistance under water                  –                       +                                                                                          pressure of 40MPa the deformation is about 5.3%.
                                                                                                                                    Radiation resistance                               Surface pressure, page 45
                       Media resistance                             –                       +
                                                                                                                                    Plain bearings made from iglidur  B are resistant up to a
                                                                                                                                                               ®
          Moulded      Resistant to edge pressures                  –                       +                                       radiation intensity of 3 · 10² Gy.
          special parts
          Page 696     Resistant to shock and impact loads          –                       +
                       Dirt resistance                              –                       +




              ®
          igubal            Online product finder                         Online service life calculation
          spherical balls
