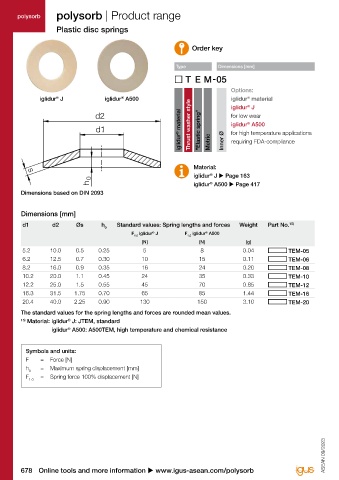

polysorb polysorb | Product range
Plastic disc springs

Order key

Type Dimensions [mm]

Options:
iglidur J iglidur A500 iglidur material
®
®
®
®
iglidur ® material "Elastic spring" Metric Inner Ø for high temperature applications
d2 iglidur J
for low wear
®
d1 Thrust washer style iglidur A500
requiring FDA-compliance

Material:
s
iglidur J u Page 163
®
h 0 iglidur A500 u Page 417
®
Dimensions based on DIN 2093

Dimensions [mm]
d1 d2 Øs h 0 Standard values: Spring lengths and forces Weight Part No. 15)
F iglidur J F iglidur A500
®
®
1.0 1.0
[N] [N] [g]
5.2 10.0 0.5 0.25 5 8 0.04 TEM-05
6.2 12.5 0.7 0.30 10 15 0.11 TEM-06
8.2 16.0 0.9 0.35 16 24 0.20 TEM-08
10.2 20.0 1.1 0.45 24 35 0.33 TEM-10
12.2 25.0 1.5 0.55 45 70 0.85 TEM-12 ®
16.3 31.5 1.75 0.70 65 85 1.44 TEM-16 iglidur PEP
20.4 40.0 2.25 0.90 130 150 3.10 TEM-20

The standard values for the spring lengths and forces are rounded mean values. multi-component bearings
15) Material: iglidur J: JTEM, standard
®
iglidur A500: A500TEM, high temperature and chemical resistance
®
Can be used with any shaft material
Symbols and units:
F = Force [N] Cost-effective
h = Maximum spring displacement [mm]
0
F = Spring force 100% displacement [N] Easy installation
1.0
Low coefficient of friction

Standard range from stock

ASEAN 09/2023 ASEAN 09/2023

678 Online tools and more information u www.igus-asean.com/polysorb
