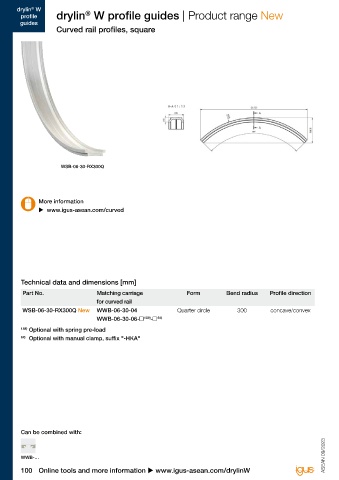

profile drylin W profile guides | Product range New drylin W profile guides | Product range New profile
guides guides
Curved rail profiles, square Curved rail profiles, round
Order key

Type Size Option

Curved rail profile Shaft Ø Profile width [mm] Radius concave/convex Bend radius Form

WSB-06-30-RX300Q Design options:
WSB-10-40-RX300Q
Q: Quarter circle

More information
u www.igus-asean.com/curved

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Matching carriage Form Bend radius Profile direction Part No. Matching carriage Form Bend radius Profile direction
for curved rail for curved rail
WSB-06-30-RX300Q New WWB-06-30-04 Quarter circle 300 concave/convex WSB-10-40-RX300Q New WWB-10-40-10- - 64) Quarter circle 300 concave/convex
188)
WWB-06-30-06- - 64) 188) Optional with spring pre-load
188)
188) Optional with spring pre-load 64) Optional with manual clamp, suffix "-HKA"
64) Optional with manual clamp, suffix "-HKA"

Can be combined with:
