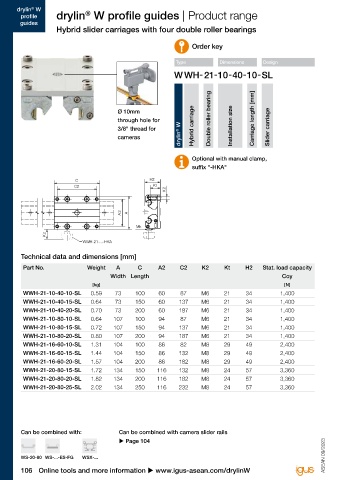

Page 108 - IGUS Linear

drylin W
®
®
profile drylin W profile guides | Product range
guides
Hybrid slider carriages with four double roller bearings

Order key

Type Dimensions Design

Ø 10mm
through hole for Double roller bearing Carriage length [mm]
drylin ® W
3/8" thread for Hybrid carriage Installation size Slider carriage
cameras

Optional with manual clamp,
suffix "-HKA"

Technical data and dimensions [mm]

Part No. Weight A C A2 C2 K2 Kt H2 Stat. load capacity
Width Length Coy
[kg] [N] ®
WWH-21-10-40-10-SL 0.59 73 100 60 87 M6 21 34 1,400 drylin linear technology -
WWH-21-10-40-15-SL 0.64 73 150 60 137 M6 21 34 1,400
®
WWH-21-10-40-20-SL 0.70 73 200 60 187 M6 21 34 1,400 drylin W hybrid roller bearings
WWH-21-10-80-10-SL 0.64 107 100 94 87 M6 21 34 1,400
WWH-21-10-80-15-SL 0.72 107 150 94 137 M6 21 34 1,400
WWH-21-10-80-20-SL 0.80 107 200 94 187 M6 21 34 1,400
WWH-21-16-60-10-SL 1.31 104 100 86 82 M8 29 49 2,400 Lubrication-free roll and slide
WWH-21-16-60-15-SL 1.44 104 150 86 132 M8 29 49 2,400 and roller bearings
WWH-21-16-60-20-SL 1.57 104 200 86 182 M8 29 49 2,400
WWH-21-20-80-15-SL 1.72 134 150 116 132 M8 24 57 3,360 Low drive forces
WWH-21-20-80-20-SL 1.82 134 200 116 182 M8 24 57 3,360
WWH-21-20-80-25-SL 2.02 134 250 116 232 M8 24 57 3,360 For manual adjustment

Suitable for radial loads

Single bearings and complete carriages

Can be combined with: Can be combined with camera slider rails
u Page 104
ASEAN 09/2023 ASEAN 09/2023

WS-20-80 WS-...-ES-FG WSX-...
106 Online tools and more information u www.igus-asean.com/drylinW
