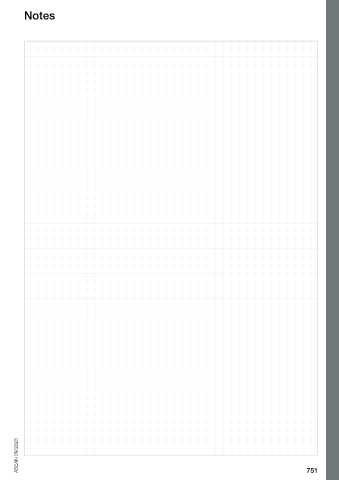

Inch Imperial product range | drylin R | Adapters Notes Inch
®
drylin R drylin R
®
®
Split aluminium adapters - Split aluminium adapters -
01 version (standard) 03 version (floating bearing)

R
o o s s o s

do do dn dn ds do dn

e e d1 d1 e
B1 B1 d2 d2
B B B1 d1
B d2

TJUI-01/TJUI-03 Chapter „ Page 225

Part No. Shaft Ø Tolerance 78) d2 d2 B B1
Tolerance 78) H10
TJUI-01-08/-03-08 1/2 +0.0016 +0.0036 .8750 –0.0008 –0.0016 1.25/1.242 .9790
TJUI-01-10/-03-10 5/8 +0.0016 +0.0036 1,125 –0.0008 –0.0016 1.50/1.492 1.124
TJUI-01-12/-03-12 3/4 +0.0016 +0.0036 1.25 –0.0008 –0,0018 1.625/1.617 1.186
TJUI-01-16/-03-16 1 +0.0016 +0.0036 1.5625 –0.0012 –0.0022 2.25/2.2382 1.773
TJUI-01-20/-03-20 1 1/4 +0.0020 +0.0039 2.00 –0.0012 –0.0022 2.625/2.6134 2.0230
TJUI-01-24/-03-24 1 1/2 +0.0020 +0.0047 2.375 –0.0012 –0.0024 3.00/2.9843 2.44
TJUI-01-32/-03-32 2 +0.0024 +0.0057 3.00 –0.0012 –0.0024 4.00/3.9803 3.222

Part No. Øs dn ds do e o
H10 h10 h10 +0.008
TJUI-01-08/-03-08 .0520 .8200 0.8563 .7120 .281 .1250
TJUI-01-10/-03-10 .0620 1.0600 1.1039 .9620 .312 .1250
TJUI-01-12/-03-12 .0620 1.177 1.2276 1.0870 .312 .1250
TJUI-01-16/-03-16 .0740 1.471 1.535 1.399 .500 .1250
TJUI-01-20/-03-20 .0740 1.889 1.9654 1.837 .625 .1250
TJUI-01-24/-03-24 .0950 2.241 2.337 2.152 .650 .1620
TJUI-01-32/-03-32 .1110 2.839 2.9531 2.775 1.00 .1890

78) According to igus testing method u Page 260
®
Please note: Installation instructions u Page 187
