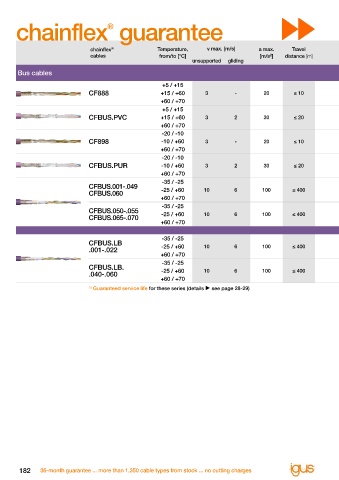

Page 188 - ASEAN Chainflex Catalogue 2023

chainflex guarantee Guaranteed service life (1)
®

Minimum bend Minimum bend Minimum bend
chainflex Temperature, v max. [m/s] a max. Travel radius [factor x d] radius [factor x d] radius [factor x d] Page
®
cables from/to [°C] [m/s ] distance [m]
2
unsupported gliding
Bus cables 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes * double strokes * double strokes *
+5 / +15 17.5 18.5 19.5
CF888 +15 / +60 3 - 20 ≤ 10 15 16 17 188
+60 / +70 17.5 18.5 19.5
+5 / +15 15 16 17
CFBUS.PVC +15 / +60 3 2 30 ≤ 20 12.5 13.5 14.5 192
+60 / +70 15 16 17
-20 / -10 17.5 18.5 19.5
CF898 -10 / +60 3 - 20 ≤ 10 15 16 17 196
+60 / +70 17.5 18.5 19.5
-20 / -10 15 16 17
CFBUS.PUR -10 / +60 3 2 30 ≤ 20 12.5 13.5 14.5 200
+60 / +70 15 16 17
-35 / -25 12.5 13.5 14.5
CFBUS.001-.049 -25 / +60 10 6 100 ≤ 400 10 11 12 204
CFBUS.060
+60 / +70 12.5 13.5 14.5
-35 / -25 15 16 17
CFBUS.050-.055 -25 / +60 10 6 100 ≤ 400 12.5 13.5 14.5 204
CFBUS.065-.070
+60 / +70 15 16 17
5 million 7.5 million 12.5 million
-35 / -25 12.5 13.5 14.5
CFBUS.LB -25 / +60 10 6 100 ≤ 400 10 11 12 210
.001-.022
+60 / +70 12.5 13.5 14.5
-35 / -25 10 11 12
CFBUS.LB. -25 / +60 10 6 100 ≤ 400 7.5 8.5 9.5 210
.040-.060
+60 / +70 10 11 12

(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Figures in brackets refer to series CF888 and CF898
