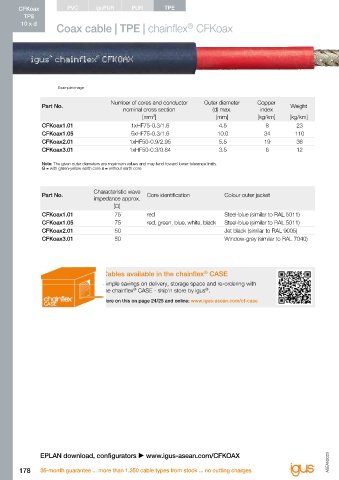

Page 184 - ASEAN Chainflex Catalogue 2023

CFKoax PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFKoax
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Coax cable | TPE | chainflex CFKoax Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CFKoax1.01 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CFKoax chainflex series .01 Number of coaxial elements
®
[mm²] [mm] [kg/km] [kg/km]
CFKoax1.01 1xHF75-0.3/1.6 4.5 8 23 Order online  www.igus-asean.com/CFKoax
CFKoax1.05 5xHF75-0.3/1.6 10.0 34 110
CFKoax2.01 1xHF50-0.9/2.95 5.5 19 36 Delivery time 24hrs or today.
CFKoax3.01 1xHF50-0.3/0.84 3.5 6 12 Delivery time means time until goods are shipped.

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Characteristic wave
Part No. Core identification Colour outer jacket
impedance approx.
[Ω]
CFKoax1.01 75 red Steel-blue (similar to RAL 5011)
CFKoax1.05 75 red, green, blue, white, black Steel-blue (similar to RAL 5011)
CFKoax2.01 50 Jet black (similar to RAL 9005)
CFKoax3.01 50 Window-grey (similar to RAL 7040)

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

®
®
Coax cable and other chainflex cables in a stage technology application. e-chain : E4/4 system

EPLAN download, configurators  www.igus-asean.com/CFKOAX

178 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 179
®
