CF299 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF299
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
4 x d ® Oil resistance none 1 2 3 4 highest 4 x d

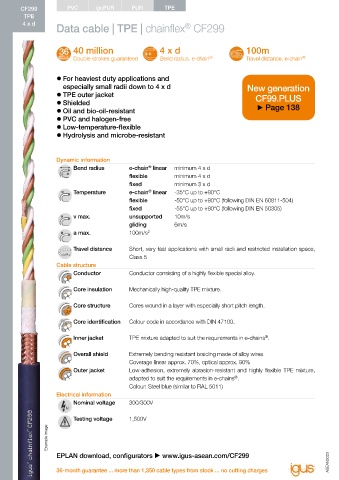

Data cable | TPE | chainflex CF299 Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

40 million 4 x d 100m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z For heaviest duty applications and 24568 with Plantocut 8 S-MB tested by DEA), Class 4
especially small radii down to 4 x d New generation Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TPE outer jacket CF99.PLUS 1992)
z Shielded  Page 138 Halogen-free Following DIN EN 60754
z Oil and bio-oil-resistant
z PVC and halogen-free UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Low-temperature-flexible service life calculator based on 2 billion test cycles per year"
z Hydrolysis and microbe-resistant REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Dynamic information
Bend radius e-chain linear minimum 4 x d Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
®
flexible minimum 4 x d CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
fixed minimum 3 x d CE Following 2014/35/EU
®
Temperature e-chain linear -35°C up to +90°C
flexible -50°C up to +90°C (following DIN EN 60811-504) UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed -55°C up to +90°C (following DIN EN 50305)
v max. unsupported 10m/s
gliding 6m/s Guaranteed service life (details see page 28-29)
a max. 100m/s 2 Double strokes* 20 million 30 million 40 million

Temperature, R min. R min. R min.
Travel distance Short, very fast applications with small radii and restricted installation space, from/to [°C] [factor x d] [factor x d] [factor x d]
Class 5 -35/-25 5 6 7
Cable structure -25/+80 4 5 6
Conductor Conductor consisting of a highly flexible special alloy. +80/+90 5 6 7
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core insulation Mechanically high-quality TPE mixture.
Typical application areas
Core structure Cores wound in a layer with especially short pitch length. z For heaviest duty applications and especially small radii down to 4 x d, Class 7
z Especially for short, very fast applications with small radii and restricted installation space, Class 5
Core identification Colour code in accordance with DIN 47100. z Almost unlimited resistance to oil, also with bio-oils, Class 4
z No torsion, Class 1
Inner jacket TPE mixture adapted to suit the requirements in e-chains . z Indoor and outdoor applications, UV-resistant
®
z Pick and place machines, automatic doors, cleanroom, very quick handling
Overall shield Extremely bending resistant braiding made of alloy wires.
Coverage linear approx. 70%, optical approx. 90%

Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, Part No. Number of cores and conductor Outer diameter Copper Weight
®
adapted to suit the requirements in e-chains . nominal cross section (d) max. index
Colour: Steel blue (similar to RAL 5011) [mm²] [mm] [kg/km] [kg/km]
Electrical information CF299.01.02 11) (2x0.14)C 6.0 17 37
Nominal voltage 300/300V CF299.01.04 11) (4x0.14)C 6.5 22 47
CF299.01.08 11) (8x0.14)C 8.5 35 80
Testing voltage 1,500V CF299.02.04 11) (4x0.25)C 7.0 32 56
8.5
(7x0.25)C
46
82
11)
CF299.02.07
Example image 11) Phase-out model (new generation CF99.PLUS Page 138)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
EPLAN download, configurators  www.igus-asean.com/CF299 G = with green-yellow earth core x = without earth core
