CF298 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF298
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
4 x d ® Oil resistance none 1 2 3 4 highest 4 x d

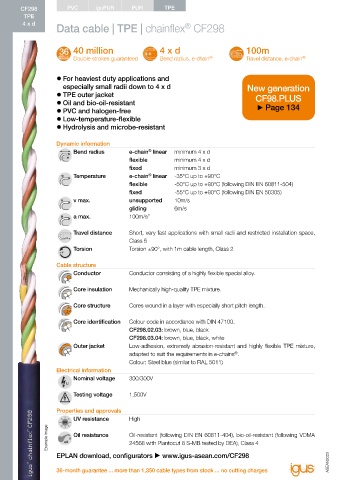

Data cable | TPE | chainflex CF298 Class 7.5.4.2 Torsion none 1 2 3 4 ±360°

40 million 4 x d 100m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Halogen-free Following DIN EN 60754

z For heaviest duty applications and UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
especially small radii down to 4 x d New generation service life calculator based on 2 billion test cycles per year"
z TPE outer jacket CF98.PLUS REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z Oil and bio-oil-resistant  Page 134
z PVC and halogen-free Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Low-temperature-flexible
z Hydrolysis and microbe-resistant Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
Dynamic information CE Following 2014/35/EU
Bend radius e-chain linear minimum 4 x d
®
flexible minimum 4 x d UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
fixed minimum 3 x d
®
Temperature e-chain linear -35°C up to +90°C
flexible -50°C up to +90°C (following DIN EN 60811-504) Guaranteed service life (details see page 28-29)
fixed -55°C up to +90°C (following DIN EN 50305) Double strokes* 20 million 30 million 40 million

v max. unsupported 10m/s Temperature, R min. R min. R min.
gliding 6m/s from/to [°C] [factor x d] [factor x d] [factor x d]
a max. 100m/s 2 -35/-25 5 6 7
-25/+80 4 5 6
Travel distance Short, very fast applications with small radii and restricted installation space, +80/+90 5 6 7
Class 5 * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Torsion Torsion ±90°, with 1m cable length, Class 2
Typical application areas
Cable structure z For heaviest duty applications and especially small radii down to 4 x d, Class 7
Conductor Conductor consisting of a highly flexible special alloy. z Especially for short, very fast applications with small radii and restricted installation space, Class 5
z Almost unlimited resistance to oil, also with bio-oils, Class 4
Core insulation Mechanically high-quality TPE mixture. z Torsion ±90°, with 1m cable length, Class 2
z Indoor and outdoor applications, UV-resistant
Core structure Cores wound in a layer with especially short pitch length. z Pick and place machines, automatic doors, cleanroom, very quick handling

Core identification Colour code in accordance with DIN 47100.

CF298.02.03: brown, blue, black Part No. Number of cores and conductor Outer diameter Copper Weight
CF298.03.04: brown, blue, black, white nominal cross section (d) max. index
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, [mm²] [mm] [kg/km] [kg/km]
®
adapted to suit the requirements in e-chains . CF298.01.02 11) 2x0.14 4.5 5 17
Colour: Steel blue (similar to RAL 5011) CF298.01.04 11) 4x0.14 5.5 9 28
Electrical information CF298.01.08 11) 8x0.14 7.0 17 49
Nominal voltage 300/300V CF298.02.03 11) 3x0.25 5.5 12 28
CF298.02.04 11) 4x0.25 6.0 16 34

Testing voltage 1,500V CF298.02.07 11) 7x0.25 7.0 28 52
CF298.02.08 11) 8x0.25 7.5 32 60
Properties and approvals CF298.03.04 11) 4x0.34 6.0 19 37
UV resistance High CF298.03.07 11) 7x0.34 7.5 34 62
11)
6.5
4x0.5
49
28
CF298.05.04
Example image Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA 11) Phase-out model (new generation CF98.PLUS Page 134)
24568 with Plantocut 8 S-MB tested by DEA), Class 4
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
EPLAN download, configurators  www.igus-asean.com/CF298 G = with green-yellow earth core x = without earth core
