CF12 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF12
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

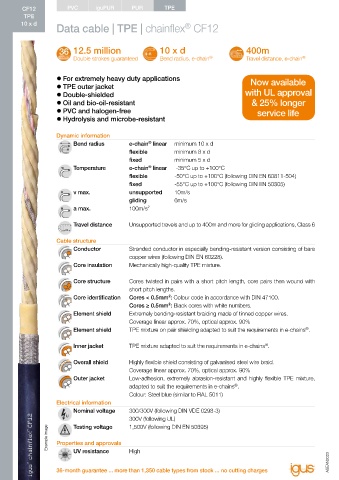

Data cable | TPE | chainflex CF12 Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

12.5 million 10 x d 400m Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
24568 with Plantocut 8 S-MB tested by DEA), Class 4
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
z For extremely heavy duty applications Now available Halogen-free Following DIN EN 60754
z TPE outer jacket
z Double-shielded with UL approval UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Oil and bio-oil-resistant & 25% longer service life calculator based on 2 billion test cycles per year"
z PVC and halogen-free service life UL AWM See data sheet for details  www.igus-asean.com/CF12
z Hydrolysis and microbe-resistant (from production date 01/2022)
EAC Certificate No. RU C-DE.ME77.B.00300/19
Dynamic information
®
Bend radius e-chain linear minimum 10 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
flexible minimum 8 x d
fixed minimum 5 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
®
Temperature e-chain linear -35°C up to +100°C
flexible -50°C up to +100°C (following DIN EN 60811-504) Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
fixed -55°C up to +100°C (following DIN EN 50305) CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
v max. unsupported 10m/s CE Following 2014/35/EU
gliding 6m/s
a max. 100m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 12.5 million
Cable structure Temperature, R min. R min. R min.
Conductor Stranded conductor in especially bending-resistant version consisting of bare from/to [°C] [factor x d] [factor x d] [factor x d]
copper wires (following DIN EN 60228). -35/-25 12.5 13.5 14.5
Core insulation Mechanically high-quality TPE mixture. -25/+90 10 11 12
+90/+100 12.5 13.5 14.5
Core structure Cores twisted in pairs with a short pitch length, core pairs then wound with * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
short pitch lengths. Typical application areas
Core identification Cores < 0.5mm²: Colour code in accordance with DIN 47100. z For heavy-duty applications, Class 6
Cores ≥ 0.5mm²: Black cores with white numbers. z Unsupported travels and up to 400m and more for gliding applications, Class 6
Element shield Extremely bending-resistant braiding made of tinned copper wires. z Almost unlimited resistance to oil, also with bio-oils, Class 4
Coverage linear approx. 70%, optical approx. 90% z No torsion, Class 1
®
Element shield TPE mixture on pair shielding adapted to suit the requirements in e-chains . z Indoor and outdoor applications, UV-resistant
z For maximum EMC protection
®
Inner jacket TPE mixture adapted to suit the requirements in e-chains . z Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
Overall shield Highly flexible shield consisting of galvanised steel wire braid.

Coverage linear approx. 70%, optical approx. 90% Part No. Number of cores and conductor Outer diameter Copper Weight
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, nominal cross section (d) max. index
adapted to suit the requirements in e-chains . [mm²] [mm] [kg/km] [kg/km]
®
Colour: Steel blue (similar to RAL 5011) CF12.02.04.02 (4x(2x0.25)C)C 11.5 52 172
Electrical information CF12.05.03.02 (3x(2x0.5))C 13.5 65 224
Nominal voltage 300/300V (following DIN VDE 0298-3) CF12.05.04.02 (4x(2x0.5)C)C 14.5 83 267
300V (following UL) CF12.05.06.02 (6x(2x0.5)C)C 17.0 128 376
20.5
(8x(2x0.5)C)C
163
503
CF12.05.08.02
1,500V (following DIN EN 50395)
Example image Properties and approvals CF12.05.10.02 11) (10x(2x0.5)C)C 22.5 203 605
Testing voltage
22.5
679
297
(14x(2x0.5)C)C
CF12.05.14.02
20.0
198
529
(6x(2x1.0)C)C
CF12.10.06.02
High
UV resistance
ASEAN2023 ASEAN2023 11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
170 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges G = with green-yellow earth core x = without earth core 171
