CF112            PVC       iguPUR      PUR         TPE                                                                                            Basic requirements         low 1 2 3 4 5 6 7 highest                    CF112
         PUR                                                                                                                                                  Travel distance   unsupported 1 2 3 4 5 6 ≥ 400m                     PUR
        10 x d                                                     ®                                                                                           Oil resistance       none 1 2 3 4 highest                          10 x d

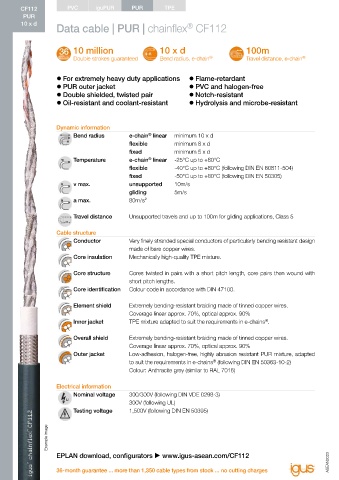

                     Data cable | PUR | chainflex  CF112                                                                         Class 6.5.3.1                       Torsion        none 1 2 3 4 ±360°



                           10 million                    10 x d                        100m                                      Properties and approvals  High
                                                                                                                                       UV resistance
                           Double strokes guaranteed     Bend radius, e-chain ®        Travel distance, e-chain ®

                                                                                                                                       Oil resistance     Oil-resistant (following DIN EN 50363-10-2), Class 3
                     z  For extremely heavy duty applications      z  Flame-retardant
                     z  PUR outer jacket                           z  PVC and halogen-free                                             Offshore           MUD-resistant following NEK 606 - status 2016
                     z  Double shielded, twisted pair              z  Notch-resistant
                     z  Oil-resistant and coolant-resistant        z  Hydrolysis and microbe-resistant                                 Flame-retardant    According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

                                                                                                                                       Silicone-free      Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
                     Dynamic information                                                                                                                  1992)
                                                     ®
                           Bend radius        e-chain  linear   minimum 10 x d                                                         Halogen-free       Following DIN EN 60754
                                              flexible        minimum 8 x d
                                              fixed           minimum 5 x d                                                            UL verified        Certificate No. B129699: "igus 36-month chainflex cable guarantee and
                                                     ®
                           Temperature        e-chain  linear   -25°C up to +80°C                                                                         service life calculator based on 2 billion test cycles per year"
                                              flexible        -40°C up to +80°C (following DIN EN 60811-504)                           UL/CSA AWM         See data sheet for details  www.igus-asean.com/CF112
                                              fixed           -50°C up to +80°C (following DIN EN 50305)
                           v max.             unsupported     10m/s                                                                    NFPA               Following NFPA 79-2018, chapter 12.9
                                              gliding         5m/s
                           a max.             80m/s²                                                                                   DNV                Type Approval Certificate TAE00003X3


                           Travel distance    Unsupported travels and up to 100m for gliding applications, Class 5                     EAC                Certificate No. RU C-DE.ME77.B.00300/19

                     Cable structure                                                                                                   REACH              In accordance with regulation (EC) No. 1907/2006 (REACH)
                           Conductor          Very finely stranded special conductors of particularly bending resistant design
                                              made of bare copper wires.                                                               Lead-free          Following 2011/65/EC (RoHS-II/RoHS-III)
                           Core insulation    Mechanically high-quality TPE mixture.
                                                                                                                                       Cleanroom          According to ISO Class 1. The outer jacket material of this series complies with
                           Core structure     Cores twisted in pairs with a short pitch length, core pairs then wound with                                CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
                                              short pitch lengths.                                                                     CE                 Following 2014/35/EU
                           Core identification  Colour code in accordance with DIN 47100.
                                                                                                                                       UKCA               In accordance with the valid regulations of the United Kingdom (as at 08/2021)
                           Element shield     Extremely bending-resistant braiding made of tinned copper wires.
                                              Coverage linear approx. 70%, optical approx. 90%
                           Inner jacket       TPE mixture adapted to suit the requirements in e-chains .                         Guaranteed service life (details see page 28-29)
                                                                                              ®
                                                                                                                                 Double strokes*               5 million             7.5 million            10 million

                           Overall shield     Extremely bending-resistant braiding made of tinned copper wires.                        Temperature,             R min.                 R min.                R min.
                                              Coverage linear approx. 70%, optical approx. 90%                                         from/to [°C]            [factor x d]          [factor x d]           [factor x d]
                           Outer jacket       Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted                 -25/-15                 12.5                  13.5                   14.5
                                                                            ®
                                              to suit the requirements in e-chains  (following DIN EN 50363-10-2)                        -15/+70                  10                    11                     12
                                              Colour: Anthracite grey (similar to RAL 7016)                                              +70/+80                 12.5                  13.5                   14.5
                                                                                                                                 * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
                     Electrical information
                           Nominal voltage    300/300V (following DIN VDE 0298-3)                                                Typical application areas
                                              300V (following UL)                                                                z  For heavy-duty applications, Class 6
                           Testing voltage    1,500V (following DIN EN 50395)                                                       z Unsupported travels and up to 100m for gliding applications, Class 5
                                                                                                                                 z  Almost unlimited resistance to oil, Class 3
                                                                                                                                   No torsion, Class 1
                   Example image                                                                                                 z  Indoor and outdoor applications with average sun radiation
                                                                                                                                 z
                                                                                                                                   Machining units/machine tools, storage and retrieval units for high-bay
                                                                                                                                 z
                     EPLAN download, configurators  www.igus-asean.com/CF112                                                      warehouses, packaging industry, quick handling, refrigerating sector
