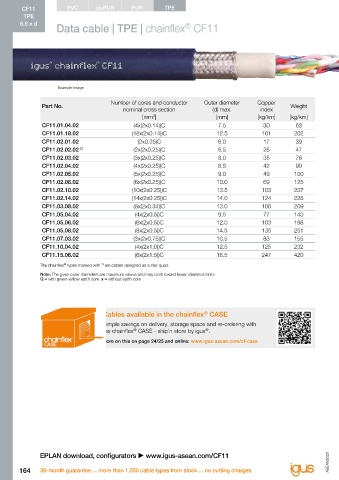

Page 170 - ASEAN Chainflex Catalogue 2023

CF11 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF11
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
6.8 x d ® Oil resistance none 1 2 3 4 highest 6.8 x d
Data cable | TPE | chainflex CF11 Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF11.01.04.02 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF11 chainflex series .01 Code nominal cross section .04 Number of cores .02 Identification pairs
®
[mm²] [mm] [kg/km] [kg/km]
CF11.01.04.02 (4x(2x0.14))C 7.5 30 63 Order online  www.igus-asean.com/CF11
CF11.01.18.02 (18x(2x0.14))C 12.5 101 202
CF11.02.01.02 (2x0.25)C 6.0 17 39 Delivery time 24hrs or today.
CF11.02.02.02 2) (2x(2x0.25))C 6.5 26 47 Delivery time means time until goods are shipped.
CF11.02.03.02 (3x(2x0.25))C 8.0 35 78
CF11.02.04.02 (4x(2x0.25))C 8.5 42 90
CF11.02.05.02 (5x(2x0.25))C 9.0 49 100
CF11.02.06.02 (6x(2x0.25))C 10.0 69 125
CF11.02.10.02 (10x(2x0.25))C 13.5 103 207
CF11.02.14.02 (14x(2x0.25))C 14.0 124 228 Reduce cost, improve technology, now!
®
CF11.03.08.02 (8x(2x0.34))C 13.0 106 209 Do the chainflex price check ...
www.igus-asean.com/cf-price-check
CF11.05.04.02 (4x(2x0.5))C 9.5 77 140
CF11.05.06.02 (6x(2x0.5))C 12.0 103 198 … for example: reduce cost with CF211.PUR ...
CF11.05.08.02 (8x(2x0.5))C 14.5 135 251
CF11.07.03.02 (3x(2x0.75))C 10.5 83 155
CF11.10.04.02 (4x(2x1.0))C 12.5 125 232
CF11.15.06.02 (6x(2x1.5))C 16.5 247 420

The chainflex types marked with are cables designed as a star-quad.
®
2)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF11

164 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 165
®
