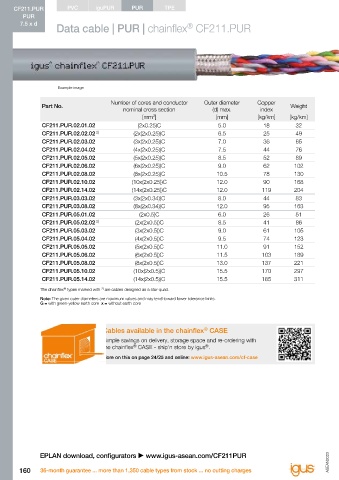

Page 166 - ASEAN Chainflex Catalogue 2023

CF211.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Data cable | PUR | chainflex CF211.PUR Class 5.5.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF211.PUR.02.01.02 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF211.PUR chainflex series .02 Code nominal cross section .01 Number of cores .02 Identification pairs
®
[mm²] [mm] [kg/km] [kg/km]
CF211.PUR.02.01.02 (2x0.25)C 5.0 18 32 Order online  www.igus-asean.com/CF211PUR
CF211.PUR.02.02.02 2) (2x(2x0.25))C 6.5 25 49
CF211.PUR.02.03.02 (3x(2x0.25))C 7.0 36 65 Delivery time 24hrs or today.
CF211.PUR.02.04.02 (4x(2x0.25))C 7.5 44 76 Delivery time means time until goods are shipped.
CF211.PUR.02.05.02 (5x(2x0.25))C 8.5 52 89
CF211.PUR.02.06.02 (6x(2x0.25))C 9.0 62 102
CF211.PUR.02.08.02 (8x(2x0.25))C 10.5 78 130
CF211.PUR.02.10.02 (10x(2x0.25))C 12.0 90 168
CF211.PUR.02.14.02 (14x(2x0.25))C 12.0 119 204
CF211.PUR.03.03.02 (3x(2x0.34))C 8.0 44 83 Reduce cost, improve technology, now!
Do the chainflex price check ...
®
CF211.PUR.03.08.02 (8x(2x0.34))C 12.0 95 163 www.igus-asean.com/cf-price-check
CF211.PUR.05.01.02 (2x0.5)C 6.0 26 51
CF211.PUR.05.02.02 2) (2x(2x0.5))C 8.5 41 86 … for example: reduce cost with CF211 ...
CF211.PUR.05.03.02 (3x(2x0.5))C 9.0 61 105
CF211.PUR.05.04.02 (4x(2x0.5))C 9.5 74 123
CF211.PUR.05.05.02 (5x(2x0.5))C 11.0 91 152
CF211.PUR.05.06.02 (6x(2x0.5))C 11.5 103 189
CF211.PUR.05.08.02 (8x(2x0.5))C 13.0 137 221
CF211.PUR.05.10.02 (10x(2x0.5))C 15.5 170 297
CF211.PUR.05.14.02 (14x(2x0.5))C 15.5 185 311

The chainflex types marked with are cables designed as a star-quad.
®
2)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF211PUR

160 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 161
®
