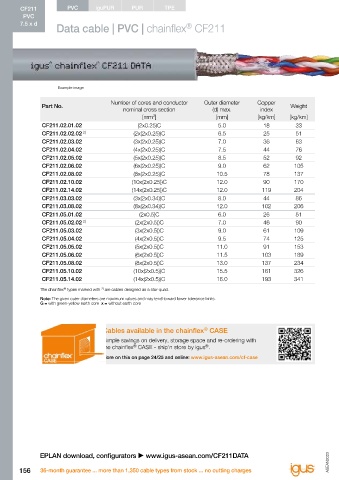

Page 162 - ASEAN Chainflex Catalogue 2023

CF211 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Data cable | PVC | chainflex CF211 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF211.02.01.02 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF211 chainflex series .02 Code nominal cross section .01 Number of cores .02 Identification pairs
®
[mm²] [mm] [kg/km] [kg/km]
CF211.02.01.02 (2x0.25)C 5.0 18 33 Order online  www.igus-asean.com/CF211DATA
CF211.02.02.02 2) (2x(2x0.25))C 6.5 25 51
CF211.02.03.02 (3x(2x0.25))C 7.0 36 63 Delivery time 24hrs or today.
CF211.02.04.02 (4x(2x0.25))C 7.5 44 76 Delivery time means time until goods are shipped.
CF211.02.05.02 (5x(2x0.25))C 8.5 52 92
CF211.02.06.02 (6x(2x0.25))C 9.0 62 105
CF211.02.08.02 (8x(2x0.25))C 10.5 78 137
CF211.02.10.02 (10x(2x0.25))C 12.0 90 170
CF211.02.14.02 (14x(2x0.25))C 12.0 119 204
CF211.03.03.02 (3x(2x0.34))C 8.0 44 86
CF211.03.08.02 (8x(2x0.34))C 12.0 102 206
CF211.05.01.02 (2x0.5)C 6.0 26 51
CF211.05.02.02 2) (2x(2x0.5))C 7.0 46 90
CF211.05.03.02 (3x(2x0.5))C 9.0 61 109
CF211.05.04.02 (4x(2x0.5))C 9.5 74 125
CF211.05.05.02 (5x(2x0.5))C 11.0 91 153
CF211.05.06.02 (6x(2x0.5))C 11.5 103 189
CF211.05.08.02 (8x(2x0.5))C 13.0 137 234
CF211.05.10.02 (10x(2x0.5))C 15.5 181 326
CF211.05.14.02 (14x(2x0.5))C 16.0 193 341

2)
The chainflex types marked with are cables designed as a star-quad.
®
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. chainflex cables (e.g. CF211) and igus e-chains
®
®
®
G = with green-yellow earth core x = without earth core
(E065 series) in a pharmacy picking systems
®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF211DATA
