CF211 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF211
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d

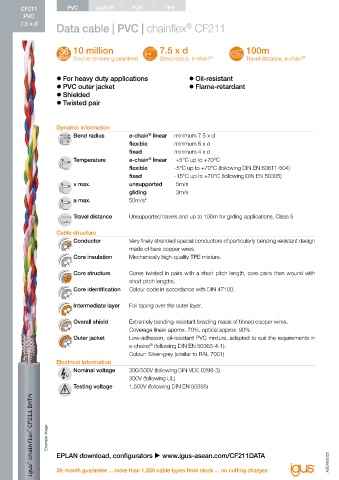

Data cable | PVC | chainflex CF211 Class 5.5.2.1 Torsion none 1 2 3 4 ±360°

10 million 7.5 x d 100m Properties and approvals Oil-resistant (following DIN EN 50363-4-1), Class 2
Oil resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z For heavy duty applications z Oil-resistant
z PVC outer jacket z Flame-retardant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Shielded 1992)
z Twisted pair UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
UL/CSA AWM See data sheet for details  www.igus-asean.com/CF211DATA
Dynamic information
Bend radius e-chain linear minimum 7.5 x d NFPA Following NFPA 79-2018, chapter 12.9
®
flexible minimum 6 x d
fixed minimum 4 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
Temperature e-chain linear +5°C up to +70°C
®
flexible -5°C up to +70°C (following DIN EN 60811-504) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 5m/s Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
gliding 3m/s
a max. 50m/s² Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1
Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 CE Following 2014/35/EU

Cable structure UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Conductor Very finely stranded special conductors of particularly bending resistant design
made of bare copper wires.
Core insulation Mechanically high-quality TPE mixture. Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 10 million
Core structure Cores twisted in pairs with a short pitch length, core pairs then wound with Temperature, R min. R min. R min.
short pitch lengths. from/to [°C] [factor x d] [factor x d] [factor x d]
Core identification Colour code in accordance with DIN 47100. +5/+15 10 11 12
+15/+60 7.5 8.5 9.5
Intermediate layer Foil taping over the outer layer. +60/+70 10 11 12
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Overall shield Extremely bending-resistant braiding made of tinned copper wires.
Coverage linear approx. 70%, optical approx. 90% Typical application areas
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z For heavy-duty applications, Class 5
®
e-chains (following DIN EN 50363-4-1). z Unsupported travels and up to 100m for gliding applications, Class 5
Colour: Silver-grey (similar to RAL 7001) z Light oil influence, Class 2
Electrical information z No torsion, Class 1
Nominal voltage 300/300V (following DIN VDE 0298-3) z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
300V (following UL) z Storage and retrieval units, machining units/packaging machines, handling, indoor cranes
Testing voltage 1,500V (following DIN EN 50395)

Example image

EPLAN download, configurators  www.igus-asean.com/CF211DATA
