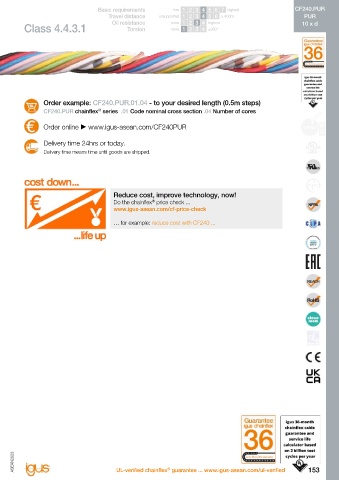

Page 159 - ASEAN Chainflex Catalogue 2023

CF240.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF240.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Data cable | PUR | chainflex CF240.PUR Class 4.4.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Order example: CF240.PUR.01.04 - to your desired length (0.5m steps)
Part No. Weight
nominal cross section (d) max. index CF240.PUR chainflex series .01 Code nominal cross section .04 Number of cores
®
[mm²] [mm] [kg/km] [kg/km]
CF240.PUR.01.04 (4x0.14)C 5.5 15 39 Order online  www.igus-asean.com/CF240PUR
CF240.PUR.01.07 (7x0.14)C 6.5 24 54
CF240.PUR.01.08 11) (8x0.14)C 7.0 26 64 Delivery time 24hrs or today.
CF240.PUR.01.14 (14x0.14)C 7.5 41 79 Delivery time means time until goods are shipped.
CF240.PUR.01.18 (18x0.14)C 8.0 51 97
CF240.PUR.01.25 (25x0.14)C 8.5 66 101
CF240.PUR.02.03 (3x0.25)C 5.5 18 41
CF240.PUR.02.04 (4x0.25)C 6.0 22 45
CF240.PUR.02.05 (5x0.25)C 6.0 25 50
CF240.PUR.02.07 (7x0.25)C 7.0 33 65 Reduce cost, improve technology, now!
Do the chainflex price check ...
®
CF240.PUR.02.08 (8x0.25)C 7.0 39 72 www.igus-asean.com/cf-price-check
CF240.PUR.02.14 (14x0.25)C 8.0 60 103
CF240.PUR.02.18 (18x0.25)C 9.0 71 122 … for example: reduce cost with CF240 ...
CF240.PUR.02.25 (25x0.25)C 10.5 97 152
CF240.PUR.03.03 (3x0.34)C 5.0 25 47
CF240.PUR.03.04 (4x0.34)C 5.5 30 54
CF240.PUR.03.05 (5x0.34)C 6.0 34 60
CF240.PUR.03.07 (7x0.34)C 6.5 45 84
CF240.PUR.03.14 (14x0.34)C 8.0 74 126
CF240.PUR.03.18 (18x0.34)C 8.5 91 156

11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CF240PUR
