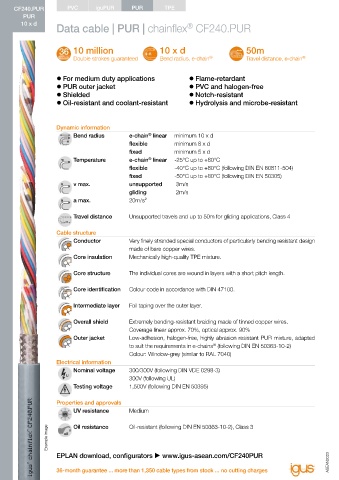

Page 156 - ASEAN Chainflex Catalogue 2023

CF240.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF240.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Data cable | PUR | chainflex CF240.PUR Class 4.4.3.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 50m Offshore MUD-resistant following NEK 606 - status 2016
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

z For medium duty applications z Flame-retardant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z PUR outer jacket z PVC and halogen-free 1992)
z Shielded z Notch-resistant Halogen-free Following DIN EN 60754
z Oil-resistant and coolant-resistant z Hydrolysis and microbe-resistant
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CF240PUR
Bend radius e-chain linear minimum 10 x d
®
flexible minimum 8 x d NFPA Following NFPA 79-2018, chapter 12.9
fixed minimum 5 x d
Temperature e-chain linear -25°C up to +80°C DNV Type Approval Certificate TAE00003X3
®
flexible -40°C up to +80°C (following DIN EN 60811-504)
fixed -50°C up to +80°C (following DIN EN 50305) EAC Certificate No. RU C-DE.ME77.B.00300/19
v max. unsupported 3m/s
gliding 2m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
a max. 20m/s²
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Travel distance Unsupported travels and up to 50m for gliding applications, Class 4
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Cable structure CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
Conductor Very finely stranded special conductors of particularly bending resistant design CE Following 2014/35/EU
made of bare copper wires.
Core insulation Mechanically high-quality TPE mixture. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core structure The individual cores are wound in layers with a short pitch length.

Core identification Colour code in accordance with DIN 47100. Guaranteed service life (details see page 28-29)
Double strokes* 5 million 7.5 million 10 million

Intermediate layer Foil taping over the outer layer. < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
Temperature,
from/to [°C] R min. R min. R min. R min. R min. R min.
Overall shield Extremely bending-resistant braiding made of tinned copper wires. [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
Coverage linear approx. 70%, optical approx. 90% -25/-15 12.5 15 13.5 16 14.5 17
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted -15/+70 10 12.5 11 13.5 12 14.5
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) +70/+80 12.5 15 13.5 16 14.5 17
Colour: Window-grey (similar to RAL 7040) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Electrical information
Nominal voltage 300/300V (following DIN VDE 0298-3) Typical application areas
300V (following UL) z For medium duty applications, Class 4
Testing voltage 1,500V (following DIN EN 50395) z Unsupported travels and up to 50m for gliding applications, Class 4
z Almost unlimited resistance to oil, Class 3
Properties and approvals z No torsion, Class 1
UV resistance Medium z Indoor and outdoor applications with average sun radiation
z Machining units/machine tools, storage and retrieval units for high-bay
Oil-resistant (following DIN EN 50363-10-2), Class 3
warehouses, packaging industry, quick handling, refrigerating sector
Example image
Oil resistance

EPLAN download, configurators  www.igus-asean.com/CF240PUR

150 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 151
®
