CF240 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF240
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

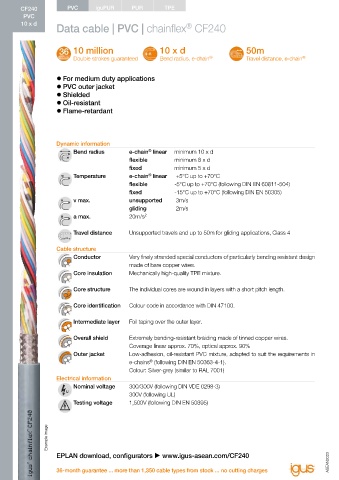

Data cable | PVC | chainflex CF240 Class 4.4.2.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 50m Properties and approvals Oil-resistant (following DIN EN 50363-4-1), Class 2
Oil resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z For medium duty applications
z PVC outer jacket Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Shielded 1992)
z Oil-resistant UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Flame-retardant service life calculator based on 2 billion test cycles per year"
UL/CSA AWM See data sheet for details  www.igus-asean.com/CF240

NFPA Following NFPA 79-2018, chapter 12.9
Dynamic information
®
Bend radius e-chain linear minimum 10 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
flexible minimum 8 x d
fixed minimum 5 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s Cleanroom According to ISO Class 1, material/cable tested by IPA according to DIN EN
gliding 2m/s ISO standard 14644-1
a max. 20m/s² CE Following 2014/35/EU

Travel distance Unsupported travels and up to 50m for gliding applications, Class 4 UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Cable structure
Conductor Very finely stranded special conductors of particularly bending resistant design Guaranteed service life (details see page 28-29)
made of bare copper wires. Double strokes* 5 million 7.5 million 10 million

Core insulation Mechanically high-quality TPE mixture. < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
Temperature,
from/to [°C] R min. R min. R min. R min. R min. R min.
Core structure The individual cores are wound in layers with a short pitch length. [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
+5/+15 12.5 15 13.5 16 14.5 17
Core identification Colour code in accordance with DIN 47100. +15/+60 10 12.5 11 13.5 12 14.5
+60/+70 12.5 15 13.5 16 14.5 17
Intermediate layer Foil taping over the outer layer. * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Typical application areas
Coverage linear approx. 70%, optical approx. 90% z For medium duty applications, Class 4
Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in z Unsupported travels and up to 50m for gliding applications, Class 4
e-chains (following DIN EN 50363-4-1). z Light oil influence, Class 2
®
Colour: Silver-grey (similar to RAL 7001) z No torsion, Class 1
Electrical information z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Nominal voltage 300/300V (following DIN VDE 0298-3) z Storage and retrieval units, machining units/packaging machines, handling, indoor cranes
300V (following UL)
Testing voltage 1,500V (following DIN EN 50395)

Example image

EPLAN download, configurators  www.igus-asean.com/CF240
