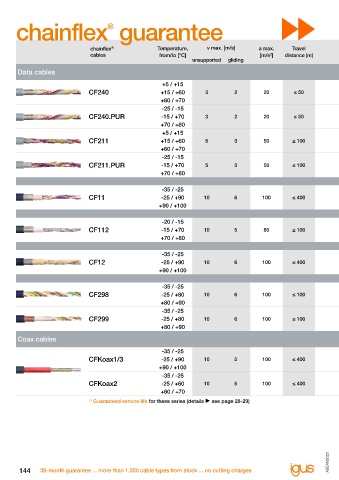

chainflex guarantee Guaranteed service life (1)
®

Minimum bend radius Minimum bend radius Minimum bend radius
chainflex Temperature, v max. [m/s] a max. Travel [factor x d] for travel distance [factor x d] for travel distance [factor x d] for travel distance Page
®
2
cables from/to [°C] [m/s ] distance [m]
unsupported gliding < 10m ≥ 10m < 10m ≥ 10m < 10m ≥ 10m
Data cables 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes * double strokes * double strokes *
+5 / +15 12.5 15 13.5 16 14.5 17
CF240 +15 / +60 3 2 20 ≤ 50 10 12.5 11 13.5 12 14.5 146
+60 / +70 12.5 15 13.5 16 14.5 17
-25 / -15 12.5 15 13.5 16 14.5 17
CF240.PUR -15 / +70 3 2 20 ≤ 50 10 12.5 11 13.5 12 14.5 150
+70 / +80 12.5 15 13.5 16 14.5 17
+5 / +15 10 11 12
CF211 +15 / +60 5 3 50 ≤ 100 7.5 8.5 9.5 154
+60 / +70 10 11 12
-25 / -15 10 11 12
CF211.PUR -15 / +70 5 3 50 ≤ 100 7.5 8.5 9.5 158
+70 / +80 10 11 12
5 million 7.5 million 12.5 million
-35 / -25 7.5 8.5 9.5
CF11 -25 / +90 10 6 100 ≤ 400 6.8 7.5 8.5 162
+90 / +100 7.5 8.5 9.5
5 million 7.5 million 10 million
-20 / -15 12.5 13.5 14.5
CF112 -15 / +70 10 5 80 ≤ 100 10 11 12 166
+70 / +80 12.5 13.5 14.5
5 million 7.5 million 12.5 million
-35 / -25 12.5 13.5 14.5
CF12 -25 / +90 10 6 100 ≤ 400 10 11 12 170
+90 / +100 12.5 13.5 14.5
20 million 30 million 40 million
-35 / -25 5 6 7
CF298 -25 / +80 10 6 100 ≤ 100 4 5 6 172
+80 / +90 5 6 7
-35 / -25 5 6 7
CF299 -25 / +80 10 6 100 ≤ 100 4 5 6 174
+80 / +90 5 6 7
Coax cables 5 million 7.5 million 10 million

-35 / -25 12.5 13.5 14.5
CFKoax1/3 -25 / +90 10 5 100 ≤ 400 10 11 12 176
+90 / +100 12.5 13.5 14.5
-35 / -25 12.5 13.5 14.5
CFKoax2 -25 / +60 10 5 100 ≤ 400 10 11 12 176
+60 / +70 12.5 13.5 14.5
(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Values in brackets apply to the CF8821 series
